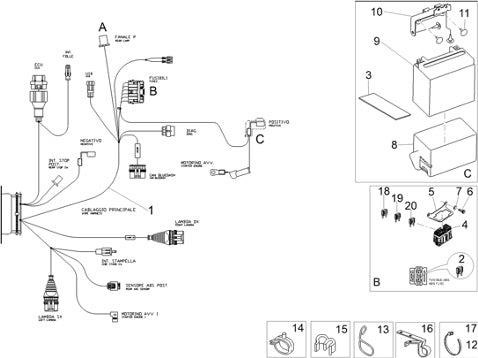

2018 V7 III Milano 750 E4 ABS Electrical Systems Rear Electrical System
| Position | Part Number | Description |
|---|---|---|
| 1 | 2D000334 | Main wiring harness (#2D000334) |
| 2 | CM225720 | Fuse (#CM225720) |
| 3 | AP8144552 | Support rubber part (#AP8144552) |
| 4 | 584211 | FUSE HOLDER TERM.BOARD 6 (#584211) |
| 5 | 883161 | PLATE (#883161) |
| 6 | CM179302 | METRICAL SCREW (#CM179302) |
| 7 | 95100059 | WASHER (#95100059) |
| 8 | 2B002781 | CAP BATTERY (#2B002781) |
| 9 | 1R000319 | BATTERY PTX14-BS (12V 12Ah) (#1R000319) |
| 9 | 638733 | Yuasa YTX14-BS (#638733) |
| 10 | 06418600 | PIASTRA FERMO BATTERIA (#06418600) |
| 11 | AP8120001 | Rubber spacer (#AP8120001) |
| 12 | 93304390 | TIE WRAP (#93304390) |
| 13 | AP8181140 | GROMMET (#AP8181140) |
| 14 | CM013202 | STOP CABLE/PIPE SPRING (#CM013202) |
| 15 | 894704 | Fairlead (#894704) |
| 16 | B043850 | Hose clamp (#B043850) |
| 17 | 14609650 | TIE WRAP (#14609650) |
| 18 | CM225705 | Fuse (#CM225705) |
| 19 | CM225715 | FUSES (#CM225715) |
| 20 | CM225730 | Fuse (#CM225730) |
