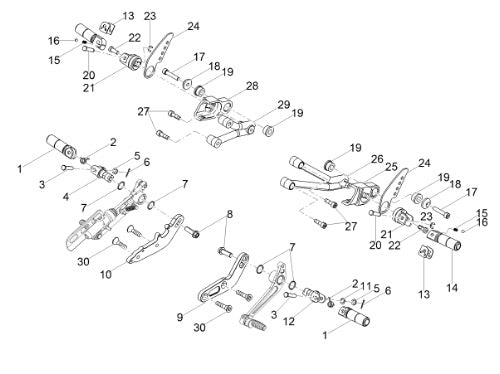

2019 2020 V7 III Racer Limited 750 E4 ABS Frame Foot Rests
| Position | Part Number | Description |
|---|---|---|
| 1 | 898281 | Foot rests (#898281) |
| 2 | ||
| 3 | 23442210 | PIVOT PIN A (#23442210) |
| 4 | 898612 | Support (#898612) |
| 5 | 95005308 | WASHER M8 (#95005308) |
| 6 | ||
| 7 | ||
| 8 | ||
| 9 | 898284 | LH Plate (#898284) |
| 10 | 898288 | RH Plate (#898288) |
| 11 | ||
| 12 | 898611 | Support (#898611) |
| 13 | ||
| 14 | ||
| 15 | ||
| 16 | ||
| 17 | 98690440 | BOLT (#98690440) |
| 18 | ||
| 19 | ||
| 20 | ||
| 21 | ||
| 22 | ||
| 23 | ||
| 24 | ||
| 25 | ||
| 26 | ||
| 27 | ||
| 28 | ||
| 29 | ||
| 30 | 98252420 | Screw M8x20 (#98252420) |
