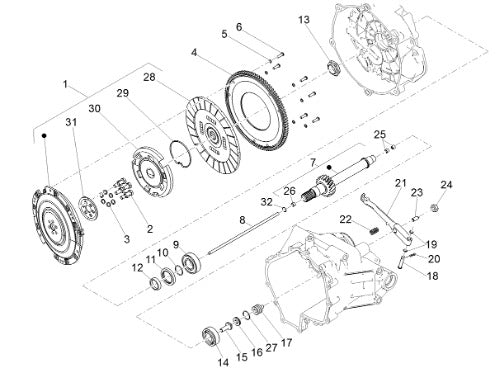

2019 2020 V9 Bobber 850 E4 ABS Clutch
| Position | Part Number | Description |
|---|---|---|
| 1 | 2A000419 | START/RUNNING CLUTCH (#2A000419) |
| 2 | 19067700 | SCREW (#19067700) |
| 3 | 14615901 | WASHER (#14615901) |
| 4 | 2A000724 | STARTING GEAR (#2A000724) |
| 5 | 14217901 | LOCK WASHER (#14217901) USE AP8152105 |
| 6 | 2A000774 | Screw (#2A000774) |
| 7 | 2A000792 | CLUTCH SHAFT WITH I.P. (#2A000792) |
| 8 | 2A000216 | CLUTCH DRIVER SHAFT (#2A000216) |
| 9 | 92201226 | Ball Bearing 25X52X15 (#92201226) |
| 10 | 90706235 | O RING (#90706235) |
| 11 | 886629 | Seal (886629) (#886629) |
| 12 | 1A008627 | SPACER (#1A008627) |
| 13 | 1A014685 | Ring Nut (#1A014685) |
| 14 | 2A000375 | BALL BEARING (#2A000375) |
| 15 | B013037 | CLUTCH TRUST BEARING SUPPORT (#B013037) |
| 16 | 2A000376 | CLUTCH THROWOUT BEARING 5 SPEED (2A000376) (#2A000376) |
| 17 | 14086100 | OUTER CLUTCH BODY (#14086100) |
| 18 | 2A000384 | CLUTCH LEVER PIN (#2A000384) |
| 19 | 2A000385 | SEAL RING (O-RING) 6.5 X 1.5 (#2A000385) |
| 20 | 95500222 | SPLIT PIN (#95500222) |
| 21 | 2A000631 | Clutch Release Shaft (#2A000631) |
| 22 | 94321105 | SPRING (#94321105) |
| 23 | 2A000838 | ADJ. SCREW (#2A000838) |
| 24 | 92606508 | Nut (#92606508) |
| 25 | 14085900 | CLUTCH PUSH ROD SEAL (TAKES 2) (#14085900) |
| 26 | 05217630 | Bush (#05217630) |
| 27 | 90706170 | O RING (#90706170) |
| 28 | 2A000770 | DRIVEN PLATE (#2A000770) |
| 29 | 2A000418 | RING (#2A000418) |
| 30 | 2A000638 | Plate (#2A000638) |
| 31 | 2A000741 | REINFORCEMENT (#2A000741) |
| 32 | 2A000378 | SEAL RING (#2A000378) |
