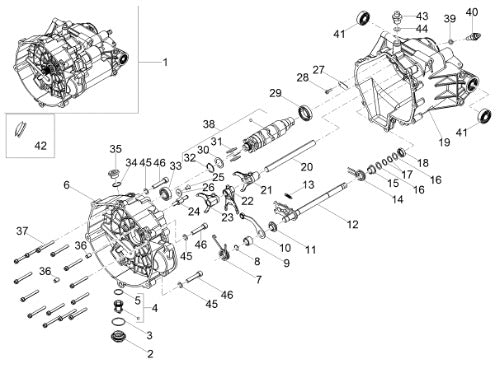

2019 2020 V9 Bobber 850 E4 ABS Gear Box Selector Shift Cam
| Position | Part Number | Description |
|---|---|---|
| 1 | 2A0009145 | GEARBOX ASSEMBLY (#2A0009145) |
| 2 | B015598 | OIL FILTER PLUG (#B015598) |
| 3 | 285536 | O-RING GASKET 31.47x1.78 (#285536) |
| 4 | B018020 | COMPLETE INTAKE OIL FILTER (#B018020) |
| 5 | B017406 | O-ring 20.35x1.78 (#B017406) |
| 6 | 2A0009105 | CLUTCH HOUSING WITH I.P. (#2A0009105) |
| 7 | B064113 | Stop lever spring (#B064113) |
| 8 | 90353014 | Circlip (#90353014) |
| 9 | 05234230 | Spacer (#05234230) |
| 10 | B064112 | Stop lever assembly (#B064112) |
| 11 | 05238431 | Bush (#05238431) |
| 12 | 2A000219 | PRESELECTOR COMPLETE (#2A000219) |
| 13 | 05238231 | Spring (#05238231) |
| 14 | B063956 | Spring (#B063956) |
| 15 | 2A000467 | Spacer (#2A000467) |
| 16 | 05239330 | Fifth Wheel (#05239330) |
| 17 | 90271014 | RING USE 90271015 (#90271014) |
| 18 | 90401424 | Gasket Ring (#90401424) |
| 19 | 2A0009085 | Gearbox housing (#2A0009085) |
| 20 | 2A000224 | Shift fork guide bar (#2A000224) |
| 21 | 2A000226 | 2a - 3a Fork (#2A000226) |
| 22 | 2A000227 | 5a - 6a Fork (#2A000227) |
| 23 | 2A000225 | 1a - 4a fork (#2A000225) |
| 24 | 2A000415 | Pin for gear selector (#2A000415) |
| 25 | B013608 | COUNTERSUNK SCREW (#B013608) |
| 26 | 873905 | WASHER (#873905) |
| 27 | 2A000306 | PLATE (#2A000306) |
| 28 | 2A000241 | SPECIAL SCREW (#2A000241) |
| 29 | 857250 | Ball bearing 61905 - 25X42X9 (#857250) |
| 30 | 05235531 | Spacer (#05235531) |
| 31 | 05234631 | Pin (#05234631) |
| 32 | 90271022 | CIRCLIP A (#90271022) |
| 33 | 834764 | BEARING (#834764) |
| 34 | 90706203 | O RING (#90706203) |
| 35 | 12022600 | PLUG (#12022600) |
| 36 | 19002020 | BUSH (#19002020) |
| 37 | 2A000591 | SPECIAL SCREW (#2A000591) |
| 38 | 2A000222 | DESMODRONIC HOUSING (#2A000222) |
| 39 | B063025 | GASKET (#B063025) |
| 40 | B063269 | STOP PUSH BOTTON (#B063269) |
| 41 | 2A000097 | BALL BEARING (#2A000097) |
| 42 | 93180220 | TIMING HOLE PLUG (#93180220) |
| 43 | 2A000823 | Breather assembly (#2A000823) |
| 44 | 224566 | PACKING (#224566) |
| 45 | 658837 | WASHER, WAVE (#658837) |
| 46 | 98680440 | Screw (#98680440) |
