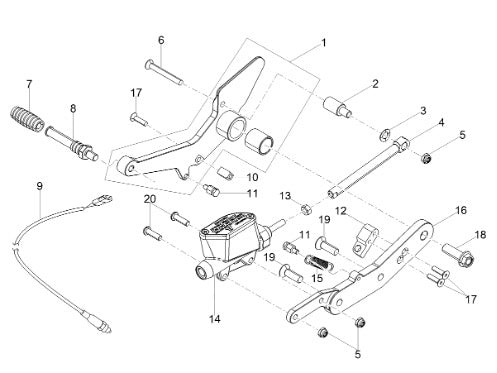

2019 2020 V9 Bobber Sport 850 E4 ABS Brake System Rear Master Cylinder
| Position | Part Number | Description |
|---|---|---|
| 1 | 2B004050 | REAR BRAKE LEVER ASSY (#2B004050) |
| 2 | 2B004107 | FLANGED SPACER (#2B004107) |
| 3 | 658837 | WASHER, WAVE (#658837) |
| 4 | 2B004076 | TIE ROD BRAKE PUMP EXTENSION (#2B004076) |
| 5 | 92630707 | NUT (#92630707) |
| 6 | 2B004111 | COUNTERSUCK SOCKED HEAD SCREW (#2B004111) |
| 7 | AP8120912 | Lever rubber (#AP8120912) |
| 8 | 2B004062 | BRAKE/SPEED GEAR LEVER PIN (#2B004062) |
| 9 | 2D0002805 | REAR BRAKE SWITCH (#2D0002805) |
| 10 | 2B004064 | REAR BRAKE LEVER STOPPER (#2B004064) |
| 11 | 898286 | Fixing pin (#898286) |
| 12 | 2B004063 | BRAKE SWITCH SUPPORT (#2B004063) |
| 13 | 92606206 | Nut (#92606206) |
| 14 | 2B002189 | Rear brake master cylind. with reservoir (#2B002189) |
| 15 | AP8121927 | Rear brake lever spr (#AP8121927) |
| 16 | 2B004042 | RH FOOTREST PLATE (#2B004042) |
| 17 | 658778 | SCREW M5, COUNTESUNK HEAD CAP (#658778) |
| 18 | 967384 | FLANGED HEXAGONAL HEAD SCREW (#967384) |
| 19 | 2B004112 | COUNTERSUCK SOCKED HEAD SCREW (#2B004112) |
| 20 | 98370625 | ALLEN SCREW (#98370625) USE STAB6X25 |
