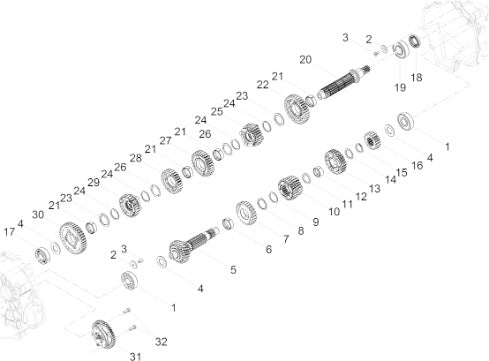

2019 2020 V9 Bobber Sport 850 E4 ABS Gear Box Gear Assembly
| Position | Part Number | Description |
|---|---|---|
| 1 | 92201822 | Ball Bearing 20X52X15 (#92201822) |
| 2 | 873928 | WASHER (#873928) |
| 3 | B013608 | COUNTERSUNK SCREW (#B013608) |
| 4 | 1A000566 | WASHER (#1A000566) |
| 5 | 2A000727 | DRIVE SHAFT (#2A000727) |
| 6 | 849308 | FLOATING BUSHING (#849308) |
| 7 | 1A000360 | DRIVERSHAFT 5 DEGREE SPEED GEAR (#1A000360) |
| 8 | 849424 | SHOULDER WASHER (#849424) |
| 9 | 1A002604 | Retaining ring for shaft (#1A002604) |
| 10 | 1A000436 | DRIVERSHAFT SLIDING 3RD &4TH GEAR (#1A000436) |
| 11 | B015040 | DRIVER SHAFT SHOULDER WASHER (#B015040) |
| 12 | 974162 | FLOATING BUSHING (#974162) |
| 13 | 2A000627 | DRIVERSHAFT 6 DEGREE SPEED GEAR (#2A000627) |
| 14 | 849396 | SHOULDER WASHER (#849396) |
| 15 | 974165 | RETAINING RING FOR SHAFT (#974165) |
| 16 | 1A000365 | DRIVERSHAFT 2 DEGREE SPEED GEAR (#1A000365) |
| 17 | 848650 | RADICAL BEARING (#848650) |
| 18 | 90412541 | SEAL (#90412541) |
| 19 | 92201226 | Ball Bearing 25X52X15 (#92201226) |
| 20 | 2A000203 | Driven shaft (#2A000203) |
| 22 | 1A000366 | 2ND SPEED GEAR (DRIVEN SHAFT) (#1A000366) |
| 23 | 849309 | SHOULDER WASHER (#849309) |
| 25 | 1A000370 | DRIVEN SHAFT 6TH SPEED GEAR (#1A000370) |
| 26 | 849310 | SHOULDER WASHER (#849310) |
| 27 | 1A000367 | 3RD SPEED GEAR (DRIVEN SHAFT) (#1A000367) |
| 28 | 1A000368 | 4TH SPEED GEAR (DRIVEN SHAFT) (#1A000368) |
| 29 | 1A000369 | DRIVEN SHAFT 5TH SPEED GEAR (#1A000369) |
| 30 | 2A000629 | 1st GEAR (DRIVEN SHAFT) (#2A000629) |
| 31 | B018448 | COMPLETE OIL PUMP (#B018448) |
| 32 | 2A000241 | SPECIAL SCREW (#2A000241) |
