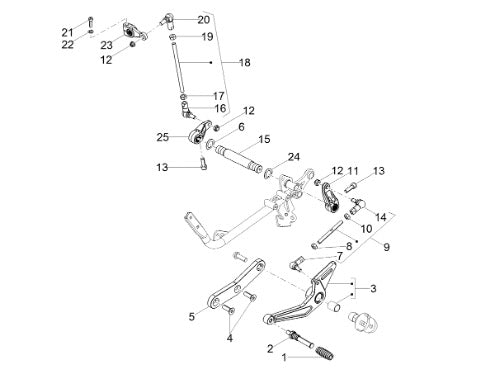

2019 2020 V9 Bobber Sport 850 E4 ABS Gear Lever
| Position | Part Number | Description |
|---|---|---|
| 1 | AP8120912 | Lever rubber (#AP8120912) |
| 2 | 2B004062 | BRAKE/SPEED GEAR LEVER PIN (#2B004062) |
| 3 | 2B004053 | GEAR LEVER ASSY (#2B004053) |
| 4 | 2B004112 | COUNTERSUCK SOCKED HEAD SCREW (#2B004112) |
| 5 | 2B004043 | LH FOOTREST PLATE (#2B004043) |
| 6 | 95129260 | SPRING WASHER (#95129260) |
| 7 | 898397 | ARICULATED JOINT (#898397) |
| 8 | 03256800 | Nut, RH thread linkage nut (#03256800) |
| 9 | 2B004109 | CONNETING ROD GEARBOX DRIVER (#2B004109) |
| 10 | 92609206 | Nut,(#92609206) |
| 11 | 2B004348 | Gear command lever (#2B004348) |
| 12 | 92630206 | NUT (#92630206) |
| 13 | 98692318 | ALLEN SCREW (#98692318) |
| 14 | 898396 | ARICULATED JOINT (#898396) |
| 15 | 2B001009 | GEAR DRIVE LEVER PIN (#2B001009) |
| 16 | AP8110053 | Left ball joint M6 (#AP8110053) |
| 17 | AP8152138 | Nut M6 sx (#AP8152138) |
| 18 | 2B001941 | Connecting rod gearbox driver (#2B001941) |
| 19 | AP8150026 | Nut M6* (#AP8150026) |
| 20 | AP8210007 | RH ball joint M6 (#AP8210007) |
| 21 | 98632322 | Screw (#98632322) |
| 22 | 03013800 | WAVE WASHER (#03013800) |
| 23 | 20258221 | Shift lever (#20258221) |
| 24 | AP8150471 | Spring washer 14,5x24 (#AP8150471) |
