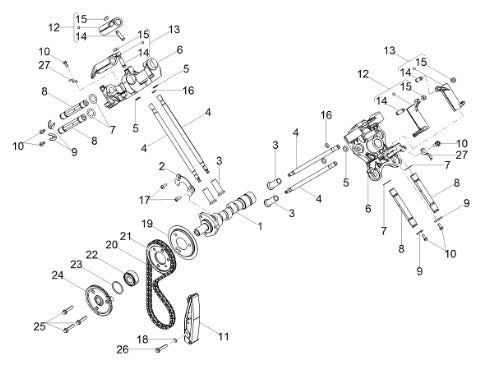

2019 2020 V9 Bobber Sport 850 E4 ABS Timing System
| Position | Part Number | Description |
|---|---|---|
| 1 | 1A010701 | CAMSHAFT WITH I.P. (#1A010701) |
| 2 | 1A009346 | SHEET-STEEL FOR CAMSHAFT CONTAINMENT (#1A009346) |
| 3 | 19045861 | TAPPET A (#19045861) |
| 4 | 2A000496 | COMPLETE ROCKER ARM DRIVING PUSH ROD (#2A000496) |
| 5 | 2A000579 | SEAL RING (O-RING) 2.62x9.19 (#2A000579) |
| 6 | 1A010730 | Rocker arm support (#1A010730) |
| 7 | 1A005951 | Cupped washer (#1A005951) |
| 8 | 2A000528 | Rocker arm pin (#2A000528) |
| 9 | 2A000521 | Fork (#2A000521) |
| 10 | AP8152272 | Screw w/flange (#AP8152272) |
| 11 | 19058220 | CHAIN TENSIONER (#19058220) |
| 12 | 1A004905 | ROCKER ARM ASSY INT.RIGHT/EX LEFT HEAD (#1A004905) |
| 13 | 1A004903 | ROCKER ARM ASSY INT. LEFT/EX. RIGHT HEAD (#1A004903) |
| 14 | 1A004907 | Valve tappet adj. screw (#1A004907) |
| 15 | 10034100 | ROCKER ARM ADJUSTER NUT (#10034100) |
| 16 | 1A006861 | RING (#1A006861) |
| 17 | B014598 | CONVEX HEAD SCREW WITH TORX IMPRESSION (#B014598) |
| 18 | 95129115 | WASHER (#95129115) |
| 19 | 1A005955 | sheet-steel (#1A005955) |
| 20 | 19058021 | CHAIN (#19058021) |
| 21 | 1A006243 | TIMING CROWN (#1A006243) |
| 22 | 1A006119 | SPACER WITH I. P. (#1A006119) |
| 23 | 1A006127 | (OR) GASKET (#1A006127) |
| 24 | 1A0057145 | PHONIC WHEEL WITH I.P. (#1A0057145) |
| 25 | 1A008576 | FLANGED HEXAGONAL HEAD SCREW (#1A008576) |
| 26 | 98882316 | Screw (#98882316) |
| 27 | 2A000527 | Plate (#2A000527) |
