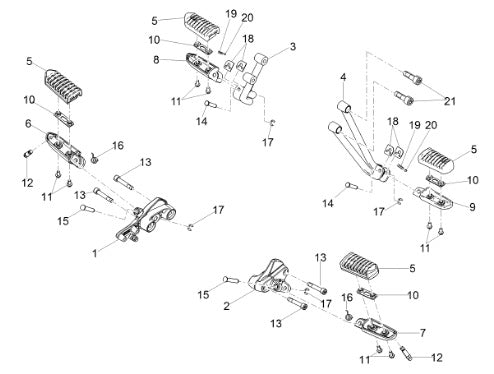

2019 2020 V9 Roamer 850 E4 ABS Foot Rests
| Position | Part Number | Description |
|---|---|---|
| 1 | 2B002218 | SUPPORT FOOTREST PILOT RIGHT (#2B002218) |
| 2 | 2B002219 | PLATE (#2B002219) |
| 3 | 2B003077 | Right footb. pass. support (#2B003077) |
| 4 | 2B003076 | Left footb. pass. support (#2B003076) |
| 5 | 2B002225 | RUBBER FOOTREST (#2B002225) |
| 6 | AP81450345 | BREVA FOOT PEG RH (AP81450345) (#AP81450345) |
| 7 | AP81450355 | FOOT REST AP81450355 (#AP81450355) |
| 8 | 32442310 | Rear Footrest RH - Breva (#32442310) |
| 9 | 32442710 | Rear Footrest LH - Breva (#32442710) |
| 10 | 32441210 | Plate - Breva (#32441210) |
| 11 | 2B005143 | HEXAG. HEAD SCREW M6x12 8.8 THREADLOCKER (#2B005143) |
| 12 | 2B004077 | THREADED PIN (#2B004077) |
| 13 | 2B004172 | (#2B004172) |
| 14 | CM228401 | PIN (#CM228401) |
| 15 | AP8121567 | Pin (#AP8121567) |
| 16 | AP8221277 | FOOT PEG SPRING (#AP8221277) |
| 17 | AP8120573 | STOP RING D7 DIN 6799 INOX A2 (#AP8120573) |
| 18 | AP8134451 | Footrest Plate (#AP8134451) |
| 19 | AP8121133 | Coil Compress, Spring (#AP8121133) |
| 20 | AP8101861 | Ball (#AP8101861) |
| 21 | 2B002171 | Torx Screw M8X25 pre-applied (#2B002171) |
