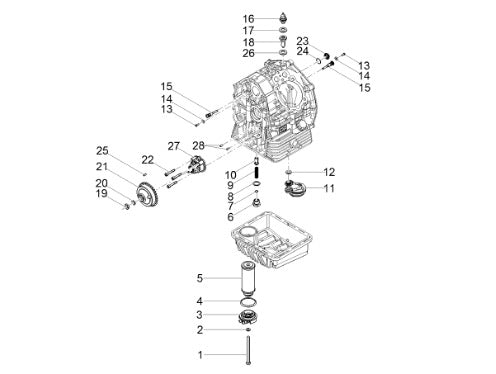

2019 2020 V9 Roamer 850 E4 ABS Lubrication
| Position | Part Number | Description |
|---|---|---|
| 1 | 27152885 | BOLT (#27152885) |
| 2 | 12154200 | OIL LINE CRUSH WASHER (#12154200) |
| 3 | 1A005199 | Oil filter cover (#1A005199) |
| 4 | 90706444 | O RING (#90706444) |
| 5 | 2A000633 | OIL FILTER Small Block 1990 and up (2A000633) (#2A000633) |
| 6 | 31159050 | Plug (#31159050) |
| 7 | 95008206 | WASHER (#95008206) |
| 8 | 18144350 | CRUSH WASHER (#18144350) |
| 9 | 94321079 | SPRING (#94321079) |
| 10 | 1A014844 | Oil pressure regulation valve (#1A014844) |
| 11 | 1A004549 | OIL STRAINER ASSY (#1A004549) |
| 12 | 237553 | O-ring for breather (#237553) |
| 13 | 1A005257 | TORX SOCKET HEAD SCREW (#1A005257) |
| 14 | 013763 | PLAIN WASHER (4,2x12x1) (#013763) |
| 15 | 1A004442 | PISTON COOLING JET (#1A004442) |
| 16 | 643090 | Minimum oil pressure sensor (#643090) |
| 17 | 95100309 | Washer (#95100309) |
| 18 | 887093 | SPECIAL SCREW (#887093) |
| 19 | 92602510 | NUT (#92602510) |
| 20 | AP8152220 | Washer (#AP8152220) |
| 21 | 20147710 | PUMP GEAR HD (#20147710) |
| 22 | 1A007008 | SCREW (#1A007008) |
| 23 | 826165 | OIL FILTER PLUG (#826165) |
| 24 | 285536 | O-RING GASKET 31.47x1.78 (#285536) |
| 25 | 92296723 | PUMP KEY A (#92296723) |
| 26 | 95100602 | Gasket (#95100602) |
| 27 | 1A006053 | COMPLETE OIL PUMP (#1A006053) |
| 28 | 19018920 | PEG (#19018920) |
