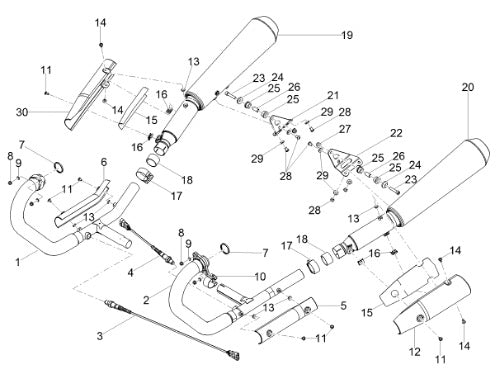

2019 V7 III Milano 750 E4 ABS Engine Exhaust Pipe
| Position | Part Number | Description |
|---|---|---|
| 1 | ||
| 2 | ||
| 3 | 896110 | Lamda sensor (#896110) |
| 4 | 584344 | LAMBDA PROBE (#584344) |
| 5 | ||
| 6 | ||
| 7 | 852090 | EXHAUST PIPE GASKET 852090 (#852090) |
| 8 | 92660021 | Nut (#92660021) |
| 9 | 14615901 | WASHER (#14615901) |
| 10 | ||
| 11 | ||
| 12 | ||
| 13 | 876879 | ELASTIC SPACER (#876879) |
| 14 | 884043 | Hex socket screw (#884043) |
| 15 | ||
| 16 | 254485 | SPRING PLATE (M6) (#254485) |
| 17 | 840370 | exhuast clamp (#840370) |
| 18 | 91113826 | Bushing (#91113826) |
| 19 | ||
| 20 | ||
| 21 | ||
| 22 | ||
| 23 | 98690440 | BOLT (#98690440) |
| 24 | ||
| 25 | ||
| 26 | ||
| 27 | 967363 | NUT (#967363) |
| 28 | ||
| 29 | 95008308 | Washer (#95008308) |
| 30 |
