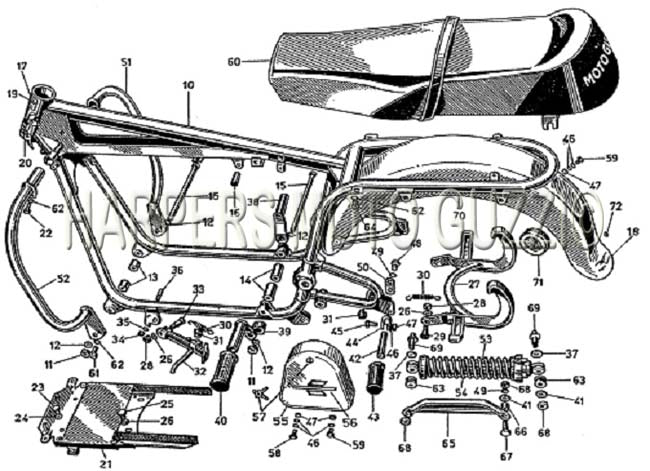

1969 1972 750 Ambassador Center Stand Side Stand Footrests Rear Fender
| Position | Part Number | Description |
|---|---|---|
| 10 | 12400102 | FRAME (#12400102) |
| 11 | 92700128 | NUT (#92700128) |
| 12 | 95100415 | WASHER (#95100415) |
| 13 | 12429701 | SPACER (#12429701) |
| 14 | 12429800 | SPACER*NLA* (#12429800) |
| 15 | 12429600 | BOLT-ROD (#12429600) |
| 16 | 91180949 | SPACER (#91180949) |
| 17 | 13918522 | (#13918522) |
| 18 | ||
| 19 | 45918570 | RIVET (#45918570) |
| 20 | 12782480 | Key, antitheft device (#12782480) |
| 20 | 12782580 | LOCK SET (#12782580) USE 12782200A |
| 21 | 12418200 | PLATE (#12418200) |
| 22 | 98024412 | 98054412 (#98024412) |
| 23 | 98108017 | BOLT (#98108017) |
| 24 | 95101231 | FLAT WASHER (#95101231) |
| 25 | 98110015 | BOLT (#98110015) |
| 26 | 95100311 | WASHER (#95100311) |
| 27 | 12430301 | STAND, CENTER MORE38B4 (#12430301) |
| 28 | 92630110 | NUT (#92630110) |
| 29 | 99105134 | BOLT (#99105134) |
| 30 | 12434001 | SPRING (#12434001) |
| 31 | 12433000 | BUFFER-CENTER STAND STOP (#12433000) |
| 32 | 12432000 | SIDE STAND (#12432000) |
| 33 | 12432800 | BOLT (#12432800) |
| 34 | 92602208 | NUT (#92602208) |
| 35 | 95100225 | WASHER (#95100225) |
| 36 | 12434200 | PEG (#12434200) |
| 37 | 95100483 | WASHER (#95100483) |
| 38 | 12440200 | PIVOT ARM (#12440200) |
| 39 | 12441305 | PIVOT ARM LH (#12441305) |
| 40 | ||
| 41 | 95100337 | WASHER (#95100337) |
| 42 | 55442300 | FOOTREST (#55442300) |
| 43 | 55443385 | PEDAL PAD RUBBER (#55443385) |
| 44 | 12442800 | PLATE (#12442800) |
| 45 | 98052325 | BOLT (#98052325) |
| 46 | 95100130 | WASHER (#95100130) |
| 47 | 92602206 | NUT (#92602206) USE STHN6MM |
| 48 | 98054522 | BOLT (#98054522) |
| 49 | 95021110 | WASHER (#95021110) |
| 50 | 12416400 | PLATE (#12416400) |
| 51 | 12450300 | CRASHBAR RH (#12450300) |
| 52 | 12450400 | CRASHBAR LH FRONT (#12450400) |
| 53 | 12550200 | FOR LONGER THREAD SEE 12432840 (#12550200) |
| 54 | 12552300 | SHOCK SPRING (#12552300) USE 12552301 |
| 55 | 13476000 | TOOL BOX RH A (#13476000) |
| 55 | 13476100 | TOOL BOX LH A (#13476100) |
| 55 | 13917500 | DECAL (#13917500) |
| 56 | 55478500 | ****KNOB***N/A USE 12478500 (#55478500) |
| 56 | 55478600 | CIRCLIP (#55478600) USE 12478600 |
| 57 | 12478800 | LOCK SET (#12478800) USE 12782200A |
| 58 | 98106017 | BOLT (#98106017) |
| 59 | 98024312 | BOLT (#98024312) |
| 60 | 12460502 | USE 13460560 (#12460502) |
| 61 | 98054418 | BOLT (#98054418) |
| 62 | 95021108 | WASHER (#95021108) |
| 63 | 55551600 | BUSHING (#55551600) USE 18551650 |
| 64 | 98108016 | BOLT (#98108016) |
| 65 | 12464320 | HANDRAIL (#12464320) |
| 66 | 91181015 | DISTANCE PIECE (#91181015) |
| 67 | 98020535 | BOLT (#98020535) |
| 68 | 92602210 | NUT (#92602210) |
| 69 | 12555200 | BOTTOM PIN (#12555200) USE 12555201 |
| 70 | 12437020 | REAR FENDER BARE (#12437020) |
| 71 | 12781520 | NLA CAN USE 1278 1521 (RED) (#12781520) |
| 71 | 12781620 | AMB REFLECTOR (AMBER) (#12781620) |
| 72 | 12706800 | RUBBER RING 561.6632 NLA 3/9/01 (#12706800) |
