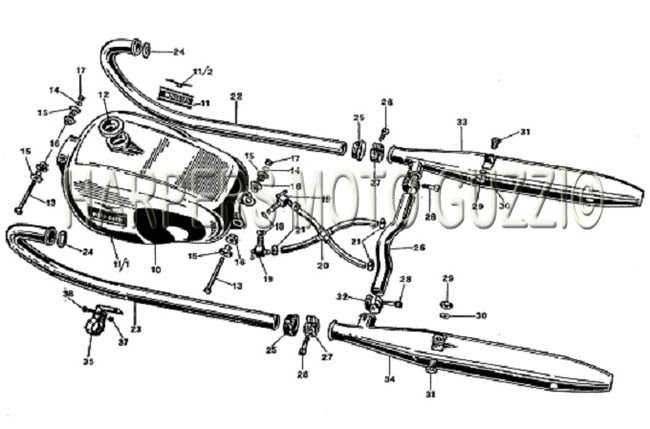

1969 1972 750 Ambassador Fuel Tank Exhaust Pipes Muffler
| Position | Part Number | Description |
|---|---|---|
| 10 | 13100200 | GAS TANK S (#13100200) |
| 11 | 12919200 | USE SHELL OIL DECAL (ITALIAN) (#12919200) |
| 11 | 13916200 | DECAL, FALCONE (#13916200) |
| 11 | 13916300 | DECAL (#13916300) |
| 11 | 13919600 | DECAL (#13919600) |
| 11 | 13919700 | DECAL (#13919700) |
| 12 | 12103900 | Rechromed Loop Frame Gas cap (#12103900) |
| 13 | 98052499 | BOLT (#98052499) |
| 14 | 95101231 | FLAT WASHER (#95101231) |
| 15 | 12103500 | BUSH (#12103500) |
| 16 | 55103425 | GAS TANK BUFFER (#55103425) |
| 17 | 92602208 | NUT (#92602208) |
| 18 | 90714123 | GASKET 463.12.18 (#90714123) USE 90714124 |
| 19 | 12105401 | PETCOCK (#12105401) |
| 20 | 12106501 | FUEL LINE X OVER (#12106501) |
| 21 | 12108400 | BAND (#12108400) |
| 22 | 12120900 | RH EXHAUST PIPE V700/AMB/ELDO (#12120900) |
| 23 | 12120905 | LH EXHAUST PIPE V700/AMB/ELDO (#12120905) |
| 24 | 90718375 | EX GASKET (EACH) V700, V7 SPT, AMB, ELDO (#90718375) |
| 25 | 12120200 | EXHAUST NUT (#12120200) |
| 26 | 12123900 | EX CROSSOVER (#12123900) |
| 27 | 12123400 | MUFFLER CLAMP(#12123400) USE 13123460 |
| 28 | 99105080 | BOLT (#99105080) |
| 29 | 92602210 | NUT (#92602210) |
| 30 | 95021110 | WASHER (#95021110) |
| 31 | 98054522 | BOLT (#98054522) |
| 32 | 55127025 | CLAMP (#55127025) USE 13127060 |
| 33 | 12123020 | USE 12123000 MUFFLER (#12123020) |
| 34 | 12122920 | USE 12122900 (#12122920) |
| 35 | 12122500 | (#12122500) |
| 36 | 98024312 | BOLT (#98024312) |
| 37 | 92602206 | NUT (#92602206) USE STHN6MM |
