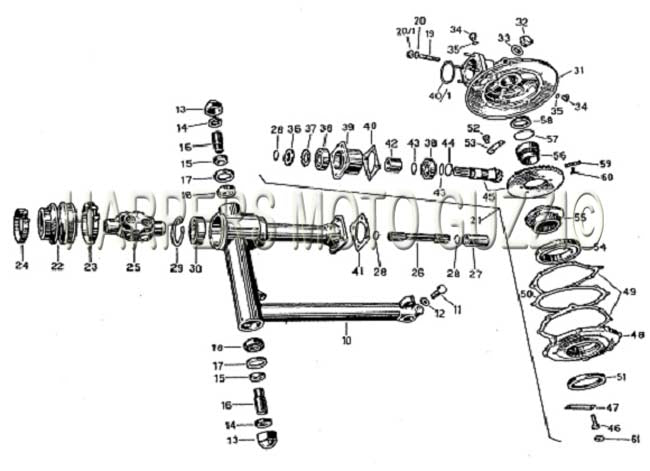

1969 1972 750 Ambassador Rear Fork Rear Drive Box Drive Shaft Bevel Gear
| Position | Part Number | Description |
|---|---|---|
| 10 | 12540200 | REAR FORK (#12540200) |
| 11 | 98020535 | BOLT (#98020535) |
| 12 | 95100331 | WASHER NLA (#95100331) |
| 13 | 12547800 | NUT (#12547800) |
| 14 | 92720200 | NUT (#92720200) |
| 15 | 12547200 | SPACER (#12547200) |
| 16 | 12547000 | SPINDLE (#12547000) |
| 17 | 90403040 | SEAL, REAR FORK SPINDLE (#90403040) |
| 18 | 92249216 | BEARING (#92249216) USE 92249217 |
| 19 | 96508045 | SCREW (#96508045) |
| 20 | 95021108 | WASHER (#95021108) |
| 21 | 13350200 | OR TRY 14350200 (#13350200) |
| 22 | 12548000 | BOOT, U-JOINT (#12548000) |
| 23 | ||
| 24 | 12548401 | CLAMP (#12548401) USE 93306050 |
| 25 | ||
| 26 | 12326300 | SHAFT (#12326300) |
| 27 | 12327700 | SLEEVE (#12327700) |
| 28 | 90271020 | CIRCLIP (#90271020) |
| 29 | 90272058 | CIRCLIP (#90272058) |
| 30 | 92204228 | BEARING (#92204228) |
| 31 | 12350300 | Rear Housing (#12350300) USE 12350301 |
| 32 | 12003701 | FILLER PLUG (#12003701) USE 12003702 |
| 33 | 90714195 | GASKET DRAIN PLUG (#90714195) USE 95100709 |
| 34 | 95980210 | PLUG (#95980210) |
| 35 | 90714101 | WASHER (#90714101) |
| 36 | 93601026 | CRANK RING NUT (#93601026) |
| 37 | 95028025 | WASHER (#95028025) |
| 38 | 92249225 | TAPERED ROLLER BRNG (#92249225) |
| 39 | 12352400 | HOUSING (#12352400) |
| 40 | 12352600 | GASKET (#12352600) |
| 40 | 90706490 | O RING (#90706490) |
| 41 | 12352900 | GASKET (#12352900) |
| 42 | 12355100 | SPACER (#12355100) |
| 43 | 12355202 | SHIM 0.10MM (#12355202) |
| 43 | 12355203 | SHIM 0.15MM (#12355203) |
| 44 | 12355301 | SHIM 1.0MM (#12355301) |
| 44 | 12355302 | SHIM 1.2MM (#12355302) |
| 44 | 12355303 | SPACER (#12355303) |
| 45 | 13354600 | BEVEL GEAR SET 8X35 (#13354600) |
| 46 | 98054425 | BOLT (#98054425) |
| 47 | 12352100 | LOCK PLATE (#12352100) |
| 48 | 12350400 | FLANGE (#12350400) |
| 49 | 12350700 | GASKET (#12350700) |
| 50 | 12355400 | SHIM 0.8MM (#12355400) |
| 50 | 12355404 | SHIM 1.0MM (#12355404) |
| 50 | 12355406 | SHIM 1.1MM (#12355406) |
| 50 | 12355408 | SHIM 1.2MM (#12355408) |
| 50 | 12355410 | SHIM 1.3MM (#12355410) |
| 50 | 12535402 | Shim 0.9 mm. (.035 inch) (#12535402) |
| 51 | 90407085 | REAR DRIVE SEAL OUTPUT TO WHEEL (90407085) USE 9041 7085 (#90407085) |
| 52 | 12356300 | SCREW (#12356300) |
| 53 | 12356400 | PLATE (#12356400) |
| 54 | 92201070 | BEARING (#92201070) |
| 55 | 12351400 | JOURNAL BEARING (#12351400) |
| 56 | ||
| 57 | 12351100 | RING COPPER METAL SPACER (#12351100) |
| 58 | 90403850 | SEAL (#90403850 ) |
| 59 | 12351300 | STOP PLATE (#12351300) |
| 60 | 98280614 | SCREW (#98280614) |
| 61 | 95004208 | WASHER (#95004208) |
