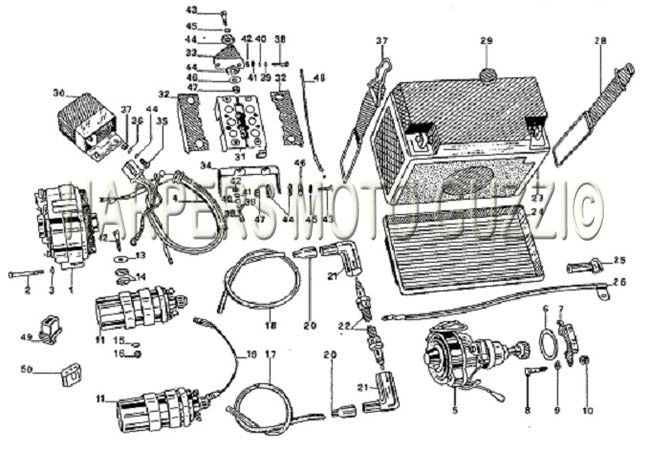

1974 1975 850 T Generator Battery
| Position | Part Number | Description |
|---|---|---|
| 1 | 17712400 | ALTERNATOR (#17712400) |
| 2 | 98620245 | SCREW (#98620245) |
| 3 | 95021105 | LOCK WASHER (#95021105) |
| 4 | 17747401 | HARNESS, ALTERNATOR (#17747401) |
| 5 | ||
| 6 | 14716400 | DISTRIBUTOR BASE GASKET (#14716400) |
| 7 | 14715700 | PLATE (#14715700) |
| 8 | 98052430 | BOLT (#98052430) |
| 9 | 95120085 | WASHER (#95120085) |
| 10 | 91180907 | SPACER (#91180907) |
| 11 | 14716500 | COIL NLA FROM MOTO (#14716500) USE DC10-1 |
| 12 | 98052330 | BOLT (#98052330) |
| 13 | 95000206 | WASHER (#95000206) |
| 14 | 93110060 | RUBBER WASHER (#93110060) |
| 15 | 65100141 | Washer (#65100141) |
| 16 | 92630106 | NUT USE 92630707 (#92630106) |
| 17 | 14718400 | CABLE (#14718400) |
| 18 | 14718600 | SPARK PLUG WIRE (#14718600) |
| 19 | 14747700 | CABLE (#14747700) |
| 20 | 13717460 | RUBBER COVER (#13717460) |
| 20 | ||
| 21 | 13717660 | SPARK PLUG CAP (#13717660) |
| 21 | 14717600 | SPARK PLUG RUBBER BOOT (#14717600) |
| 22 | 25717025 | Spark plug (#25717025) |
| 23 | 14704500 | BATTERY (#14704500) |
| 24 | 14707000 | BATTERY TRAY (#14707000) |
| 25 | 25707100 | CAP-STARTER (#25707100) |
| 26 | 14748400 | BATTERY CABLE NEGATIVE NLA (#14748400) |
| 27 | 14705500 | BATTERY STRAP, REAR (#14705500) |
| 28 | 14704800 | BATTERY STRAP (#14704800) |
| 29 | 93180220 | TIMING HOLE PLUG (#93180220) |
| 30 | 17703800 | VOLTAGE REGULATOR (#17703800) use 040003 |
| 31 | ||
| 32 | 14704205 | Cover (#14704205) |
| 33 | 17704400 | SUPPORT (#17704400) |
| 34 | 17704100 | SUPPORT (17704100) (#17704100) |
| 35 | 98054312 | BOLT (#98054312) |
| 36 | 95021106 | WASHER, WAVE (#95021106) |
| 37 | 92602206 | NUT (#92602206) USE STHN6MM |
| 38 | 98305017 | SCREW (#98305017) |
| 39 | 95100059 | WASHER (#95100059) |
| 40 | 95000205 | WASHER (#95000205) |
| 42 | 92602205 | NUT (#92602205) |
| 43 | 98054320 | BOLT (#98054320) |
| 46 | 95100141 | WASHER (#95100141) |
| 48 | 17748500 | CABLE (#17748500) |
| 49 | 61712600 | CONNECTOR (#61712600) |
| 50 | 61712500 | CONNECTOR (#61712500) |
