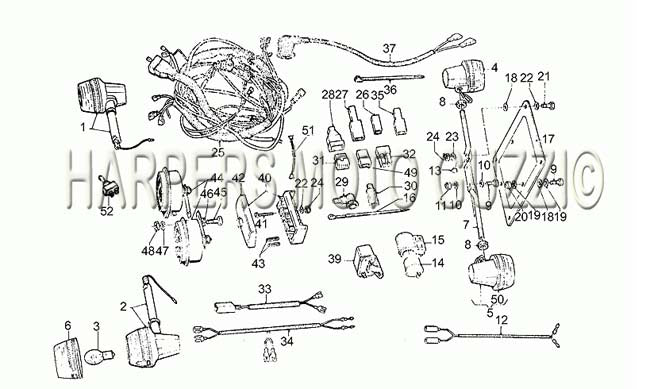

1976 1979 850 T3 Civilian And LAPD Electrical System
| Position | Part Number | Description |
|---|---|---|
| 1 | 19750656 | TURN SIGNAL LIG (#19750656) |
| 1 | 23750680 | TURN SIGNAL INDICATOR (#23750680) |
| 3 | 93450129 | BULB (#93450129) |
| 4 | 14751682 | LR T/S LAMP (#14751682) |
| 5 | 14751683 | INDICATOR (#14751683) |
| 6 | 14753780 | LENS (#14753780) |
| 6 | 39753771 | TURN SIGNAL LENS (#39753771) |
| 7 | 18753501 | REAR T/S MOUNTNG BRKT W/T/SIG STEM/CHROME (#18753501) |
| 8 | 19742050 | NUT (#19742050) |
| 9 | 98054316 | BOLT (#98054316) USE STHB6X16 |
| 10 | 95000206 | WASHER (#95000206) |
| 11 | 92602206 | NUT (#92602206) USE STHN6MM |
| 12 | 17753140 | REAR IND. CABLE (#17753140) |
| 13 | 93180110 | PLUG (#93180110) |
| 14 | 17750520 | TURN SIGNAL FLASHER (#17750520) |
| 15 | 17751200 | FLASHER HOLDER (#17751200) |
| 16 | 14609650 | TIE WRAP (#14609650) |
| 17 | 10474600 | PLATE (#10474600) |
| 18 | 93110060 | RUBBER WASHER (#93110060) |
| 19 | 95100141 | WASHER (#95100141) |
| 20 | 92630106 | NUT USE 92630707 (#92630106) |
| 21 | 98054220 | BOLT (#98054220) |
| 22 | 95000205 | WASHER (#95000205) |
| 23 | 95100059 | WASHER (#95100059) |
| 24 | 92630105 | NUT (#92630105) |
| 25 | 17747150 | CABLE SET T3, G5, CONVERT (#17747150) |
| 26 | 93400962 | SPADE TERMINAL (#93400962) |
| 27 | 93400863 | SPADE TERMINAL (#93400863) |
| 28 | 17756000 | COVER (#17756000) |
| 29 | 12735100 | CAP (#12735100) |
| 30 | 13768200 | CAP (#13768200) |
| 31 | 14756251 | SOCKET (#14756251) |
| 32 | 17748950 | CABLE CONNECTOR (#17748950) |
| 33 | 17747350 | Connecting Wire (#17747350) |
| 34 | 17747650 | CABLE SET (#17747650) |
| 35 | 93400963 | CONNECTORS (#93400963) |
| 37 | 17747550 | WIRING HARNESS (#17747550) |
| 39 | 19732500 | HORN, HL OR STARTER RELAY (#19732500) |
| 40 | 17743000 | FUSE BLOCK (#17743000) |
| 41 | 98202530 | SCREW (#98202530) |
| 42 | 17743100 | COVER NLA (#17743100) |
| 43 | 17742550 | FUSE 16 AMP (#17742550) |
| 44 | 14743700 | HORN (#14743700) |
| 44 | 14743701 | HORN (#14743701) |
| 45 | 98052435 | BOLT (#98052435) |
| 46 | 95000208 | WASHER (#95000208) |
| 47 | 95021108 | WASHER (#95021108) |
| 48 | 92602208 | NUT (#92602208) |
| 51 | 28727200 | RESISTANCE (#28727200) |
