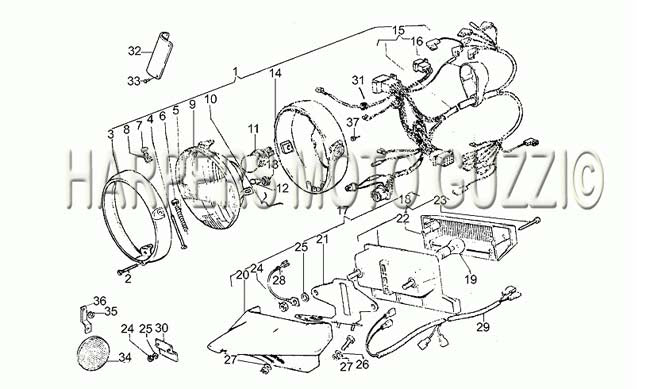

1976 1979 850 T3 Civilian And LAPD Lights 850t3

Position Part Number Description
1 17740521 H.L. COMPLETE***NLA*** (#17740521)
1 17740552 HL COMPLETE (#17740552)
1 18740552 HEADLIGHT (#18740552)
1 31740520 USE 28740533 (#31740520)
2 19740302 SCREW (#19740302)
2 39740302 SCREW (#39740302)
3 19740454 HEADLIGHT RIM (#19740454)
4 19740303 SCREW (#19740303)
4 39740303 screw (#39740303)
5 19740457 SPRING (#19740457)
5 39740304 Spring (#39740304)
6 17740362 CABLE END (#17740362)
6 19740305 NUT (#19740305)
7 19740306 PIN (#19740306)
7 39740306 PIN (#39740306)
8 19740307 CIRCLIP (#19740307)
9
9 19740455 EURO H/D LIGHT (#19740455)
10 19740301 SPRING (#19740301)
10 39740530 SPRING (#39740530)
11 93450231 BULB (#93450231)
12 93450119 BULB 12V (#93450119) USE 163015
13 19740309 RUBBER GROMMET (#19740309)
14 17740463 BODY (#17740463)
14 39740405 Headlight body (#39740405)
15
15
15 18740452 CABLE KIT (#18740452)
16 19740404 PLUG COVER (#19740404)
17 19740900 LAMP (#19740900)
18 65740900 TAIL LITE (#65740900)
19 93450224 BULB T.L. (#93450224)
20 19741000 T/LITE HOUSING (#19741000)
21 19741200 SUPPORT (#19741200)
22 65741700 LENS (#65741700)
23 35751870 SCREW (#35751870)
24 92602206 NUT (#92602206) USE STHN6MM
25 95000206 WASHER (#95000206)
26 98054316 BOLT (#98054316) USE STHB6X16
27 95100121 WASHER (#95100121)
28 14748100 CABLE (#14748100)
29 18747651 CABLE KIT (#18747651)
30 17436860 PLATE (#17436860)
31 17740327 CABLE GUIDE (#17740327)
32 17918422 DGM dataplate (#17918422)
33 45918570 RIVET (#45918570)
34 31781560 REFLEX REFLECTOR (#31781560)
35 10741640 PLATE (#10741640)
36 95100059 WASHER (#95100059)
37 17740366 SCREW (#17740366)
