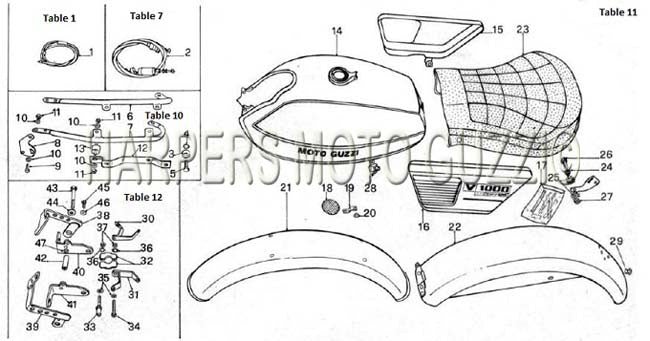

1976 1981 1000 Convert Changes For Lapd Usa Pg 1
| Position | Part Number | Description |
|---|---|---|
| 1 | 13117541 | THR. CABLE 850 T3,V1000,CONVERT (LAPD) 45.5 (#13117541) |
| 2 | 18093040 | CLUTCH CABLE CAL II,G5,T3,CONVERT LAPD (#18093040) |
| 3 | 91181012 | SPACER (#91181012) |
| 4 | 95021110 | WASHER (#95021110) |
| 5 | 98054535 | BOLT (#98054535) |
| 6 | 17463540 | RADIO MOUNT (#17463540) |
| 7 | 17463640 | SADDLE & CARRIE (#17463640) |
| 8 | ||
| 9 | 98054422 | BOLT (#98054422) |
| 10 | 95004208 | WASHER (#95004208) |
| 11 | 92630108 | NUT 8MM (#92630108) |
| 12 | 18468940 | RADIO BRACKET (#18468940) |
| 13 | 17468840 | RUBBER SUPPORT (#17468840) |
| 14 | 18100240 | GAS TANK BLACK (#18100240) |
| 15 | 18476240 | RH COVER BLACK (#18476240) |
| 16 | 18474340 | 18476340 (#18474340) |
| 17 | 18923340 | TRANSFER KIT (#18923340) |
| 18 | 12781621 | USE 12781521 REFLEX REFLECTO AMBER NLA (#12781621) |
| 19 | 10741640 | PLATE (#10741640) |
| 20 | 95100059 | WASHER (#95100059) |
| 21 | 17434440 | FRT. FENDER (#17434440) |
| 22 | 17437040 | REAR FENDER (#17437040) |
| 23 | 17460540 | SOLO SEAT KIT FOR T, T3, G5, CONVERT (#17460540) |
| 24 | 41432100 | SPACER (#41432100) |
| 25 | 14444300 | WASHER (#14444300) |
| 26 | 98054425 | BOLT (#98054425) |
| 27 | 92602208 | NUT (#92602208) |
| 28 | 14105405 | PETCOCK LH (#14105405) USE 17105460 |
| 29 | 93180070 | PLUG (#93180070) |
| 30 | 17785040 | RADIO BRACKET R (#17785040) |
| 31 | 17785340 | RADIO BRACKET L (#17785340) |
| 32 | 53500240 | CLAMP (#53500240) |
| 33 | 18500750 | SCREW (#18500750) |
| 34 | 98620445 | SCREW (#98620445) |
| 36 | 95021108 | WASHER (#95021108) |
| 38 | 17506840 | BRACKET R/H (#17506840) |
| 39 | 17506940 | WINDSCREEN LH BRACKET (#17506940) |
| 40 | 17751340 | PURSUIT LAMP RH (#17751340) |
| 41 | 17751440 | PURSUIT LAMP LH (#17751440) |
| 42 | 91181149 | SPACER (#91181149) |
| 43 | 98052570 | BOLT (#98052570) |
| 44 | 95000210 | WASHER (#95000210) |
| 45 | 98054316 | BOLT (#98054316) USE STHB6X16 |
| 46 | 95000206 | WASHER (#95000206) |
| 47 | 92602206 | NUT (#92602206) USE STHN6MM |
