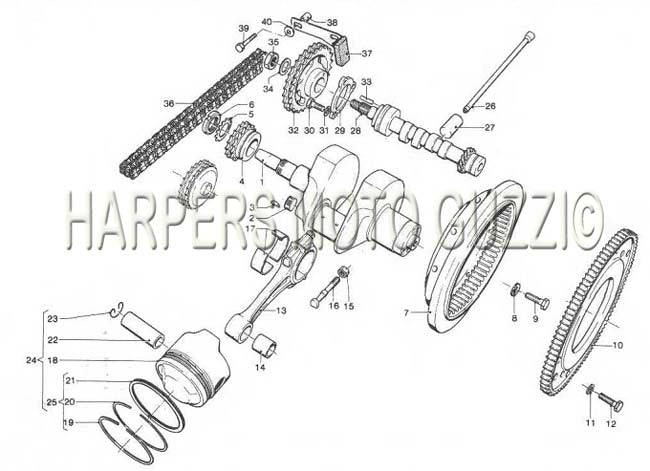

1976 1981 1000 G5 Connecting And Timing System
| Position | Part Number | Description |
|---|---|---|
| 1 | 18064201 | 18064204 (#18064201) |
| 2 | 12065400 | CRANK PLUG (#12065400) |
| 3 | 91702355 | WOODRUFF KEY (#91702355) |
| 4 | 14072001 | SPROCKET (#14072001) |
| 5 | 95028025 | WASHER (#95028025) |
| 6 | 93601026 | CRANK RING NUT (#93601026) |
| 7 | 17067050 | FLYWHEEL (#17067050) |
| 8 | 14615901 | WASHER (#14615901) |
| 9 | 12067701 | SCREW (#12067701) use 597150 |
| 10 | 17067900 | RING GEAR (#17067900) |
| 11 | 95120085 | WASHER (#95120085) |
| 12 | 98054420 | BOLT (#98054420) |
| 13 | 14061550 | ****ROD***N/A (#14061550) |
| 14 | 91112124 | BUSHING (#91112124) USE 91112128 |
| 15 | 92731090 | NUT (#92731090) |
| 16 | 14062201 | CONN.ROD BOLT USE 30062260 (#14062201) |
| 17 | 12062005 | HALF BEARING (#12062005) USE 01062030 |
| 17 | 12062006 | HALF BEARING (#12062006) USE 30062001 |
| 17 | 12062007 | HALF BEARING (#12062007) |
| 17 | 12062008 | HALF BEARING (#12062008) |
| 18 | 18060450 | PISTON (#18060450) |
| 18 | 18060550 | 17060360 (#18060550) |
| 18 | 18060551 | 6/10 BARE PSTN (#18060551) |
| 19 | 18060750 | PISTON RING (#18060750) |
| 19 | 18060751 | 18060660 (#18060751) |
| 19 | 18060752 | 18060661 (#18060752) |
| 20 | 18060951 | PIST.RING-.4 OS (#18060951) |
| 20 | 18060952 | RING-2ND 6/10 A (#18060952) |
| 20 | 181060950 | Piston ring (#181060950) |
| 21 | 18061050 | PISTON RING (#18061050) |
| 21 | 18061051 | 18060660 (#18061051) |
| 21 | 18061052 | 18060661 (#18061052) |
| 22 | 13061260 | PISTON PIN (#13061260) |
| 23 | 90351037 | CIRCLIP USE 27061385 (#90351037) |
| 24 | 18060250 | PISTON (#18060250) |
| 24 | 18060350 | PISTON 1ST OVERSIZED (#18060350) |
| 24 | 18060351 | PISTON 6/10 (#18060351) |
| 25 | 18060650 | RING SET (#18060650) USE 17060660 |
| 25 | 18060651 | 17060661 (#18060651) |
| 25 | 18060652 | USE 17060662 (#18060652) |
| 26 | 17045050 | PUSH ROD TAPPET STEM (#17045050) |
| 27 | 10042802 | Valve plunger oversize (0.10mm) (#10042802) |
| 27 | 10045800 | 10045800 supercedes to 17045860 (#10045800) |
| 27 | 10045801 | TAPPET OR PLUNGER (#10045801) |
| 28 | 14063301 | Camshaft (#14063301) |
| 29 | 12054000 | FLANGE (#12054000) |
| 30 | 98054320 | BOLT (#98054320) |
| 31 | 95120065 | WASHER (#95120065) |
| 32 | 13054502 | GEAR (#13054502) |
| 33 | 95512060 | PIN ROLLER (#95512060) |
| 34 | 14433400 | WASHER (#14433400) |
| 35 | 92602518 | NUT (#92602518) |
| 36 | 13058000 | TIMING CHAIN (#13058000) |
| 37 | 13058200 | TENSIONER 30057810 (#13058200) |
| 38 | 91180915 | BUSHING (#91180915) |
| 39 | 98054440 | BOLT (#98054440) |
| 40 | 61270300 | WASHER (#61270300) |
