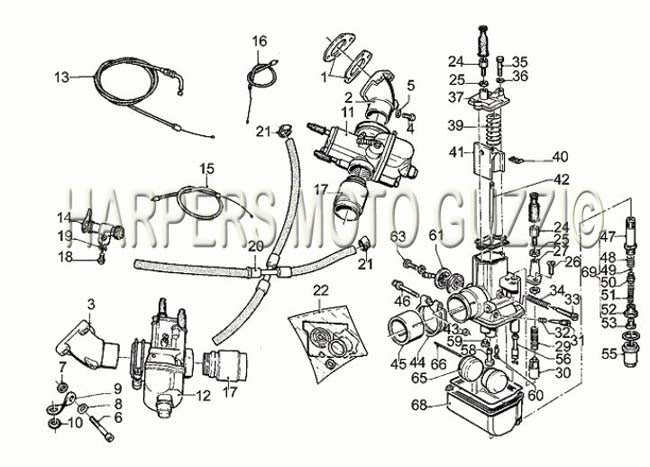

1979 1983 Sp 1000 Carburettors
| Position | Part Number | Description |
|---|---|---|
| 1 | 14115500 | CARB MANIFOLD GASKET (#14115500) |
| 2 | 14115002 | INTAKE MANIFOLD (#14115002) |
| 3 | 14115003 | INTAKE MANIFOLD (#14115003) |
| 4 | 98326009 | SCREW (#98326009) |
| 5 | 95100116 | WASHER (#95100116) |
| 6 | 98620435 | SCREW USE 9868 0435 (#98620435) |
| 7 | 90716083 | WASHER (#90716083) |
| 8 | 95004208 | WASHER (#95004208) |
| 9 | 14115401 | BRACKET (#14115401) |
| 10 | 91551081 | GROMMET (#91551081) |
| 11 | 18112650 | CARB. RH (#18112650) |
| 12 | 18112651 | CARB. LH (#18112651) |
| 13 | 17117561 | THROTTLE CABLE 1000 SP (#17117561) |
| 14 | 17133151 | STARTER DEVICE (#17133151) |
| 15 | 17133550 | LH CARB. STARTER CHOKE CABLE (#17133550) SP, T5 |
| 16 | 17134060 | #16 LH choke cable (#17134060) |
| 17 | ||
| 18 | 98054210 | BOLT (#98054210) |
| 19 | 95021105 | LOCK WASHER (#95021105) |
| 20 | 17106550 | FUEL PIPE (#17106550) USE 29106501 |
| 21 | 61108400 | CLAMP (#61108400) |
| 22 | 17939950 | CARB.GSKT. KIT VHB 24, 29 & 30 CARBS SQUARE SLIDE (#17939950) |
| 24 | 12937200 | CABLE ADJUSTER (#12937200) |
| 25 | 12937300 | NUT (#12937300) |
| 26 | 13937900 | SCREW (#13937900) |
| 27 | ||
| 29 | 13937600 | SPRING (#13937600) |
| 30 | 13937800 | VALVE CHOKE (#13937800) |
| 31 | 13936200 | SCREW (#13936200) |
| 32 | 13936300 | SPRING (#13936300) |
| 33 | 13936600 | SCREW (#13936600) |
| 34 | 13936700 | SPRING (#13936700) |
| 35 | 13932800 | SCREW NLA (#13932800) |
| 36 | 13932900 | WASHER (#13932900) |
| 37 | 13935000 | COVER (#13935000) |
| 39 | 13937100 | SPRING (#13937100) |
| 40 | 55938585 | NEEDLE CLIP (#55938585) |
| 41 | 14937501 | THROTTLE SLIDE (#14937501) |
| 42 | 14937701 | Slide Needle V9 (#14937701) |
| 43 | 14936800 | NUT (#14936800) |
| 44 | 14938700 | RING (#14938700) |
| 45 | 14938900 | INSUL. BUSHING USE 17938960 (#14938900) |
| 46 | 14938600 | SCREW (#14938600) |
| 47 | ||
| 48 | 17939000 | PUMP PLUNGER (#17939000) |
| 49 | 17939100 | BALL VALVE (#17939100) |
| 50 | 17939200 | VALVE SEAT (#17939200) |
| 51 | 17939300 | SPRING (#17939300) |
| 52 | 17939400 | JET HOLDER (#17939400) |
| 53 | 18935750 | JET (#18935750) USE 1486125 |
| 55 | 13933700 | CARB BOWL NUT (#13933700) |
| 56 | 13936000 | START JET #80 (#13936000) |
| 58 | 13935500 | ATOMIZER #265 FOR VHB (#13935500) |
| 59 | 66935910 | PILOT JET (#66935910) USE 148650 |
| 60 | 13934800 | FLOAT NEEDLE VALVE (#13934800) |
| 61 | 13934600 | CARB.ADAPTER BLACK PLASTIC (#13934600) |
| 63 | 10934900 | BOLT (#10934900) |
| 65 | 14933000 | FLOATS - ALL BIG BLOCK (#14933000) |
| 66 | 13933100 | FLOAT PIN (13933100) (#13933100) |
| 68 | 13934400 | BODY (#13934400) |
| 69 | 14938800 | JET HOLDER KIT (#14938800) |
