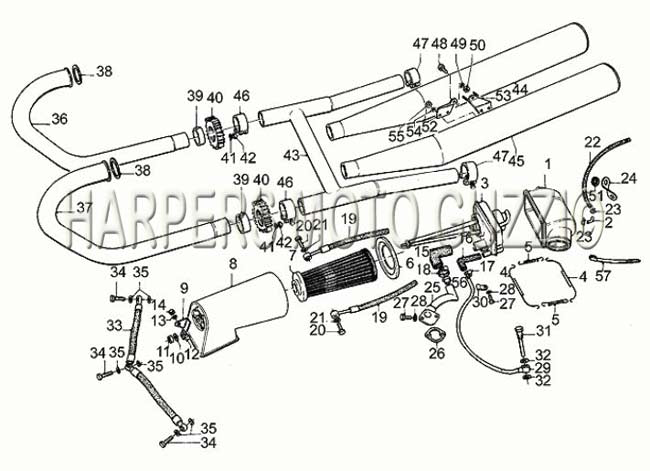

1979 1983 Sp 1000 Intake Exhaust
| Position | Part Number | Description |
|---|---|---|
| 1 | 17114350 | AIR FILTER BOOT (#17114350) |
| 2 | 17114650 | ELBOW (#17114650) |
| 3 | 17155751 | OIL BREATHER (#17155751) |
| 4 | 17114553 | BUCKLE (#17114553) |
| 5 | ||
| 6 | 17113450 | CARB CLAMP (#17113450) |
| 7 | 17113651 | AIR FILTER (#17113651) |
| 8 | 17114050 | Air Filter Chamber (17114050) (#17114050) |
| 9 | 17114150 | BRACKET (#17114150) |
| 10 | 95100059 | WASHER (#95100059) |
| 11 | 92602205 | NUT (#92602205) |
| 12 | 98054314 | SCREW (#98054314) |
| 13 | 95021106 | WASHER, WAVE (#95021106) |
| 14 | 92602206 | NUT (#92602206) USE STHN6MM |
| 15 | 17154850 | ELBOW PIPE (#17154850) |
| 16 | 17154950 | ELBOW PIPE (#17154950) |
| 17 | 93305017 | HOSE CLAMP (#93305017) |
| 18 | 12157800 | BAND OR CLAMP (#12157800) |
| 19 | 17159650 | OIL RETURN LINE (#17159650) |
| 20 | 95990037 | BANJO BOLT (#95990037) |
| 21 | 12154200 | OIL LINE CRUSH WASHER (#12154200) |
| 22 | 95985532 | HOSE (#95985532) |
| 23 | 61108500 | CLIP (#61108500) |
| 24 | 14115401 | BRACKET (#14115401) |
| 25 | 01007200 | VENT PIPE A (#01007200) |
| 26 | 12007600 | OIL RETURN GASKET (#12007600) |
| 27 | 98054318 | BOLT (#98054318) |
| 28 | 95120065 | WASHER (#95120065) |
| 29 | ||
| 30 | 12006500 | BAND (#12006500) |
| 31 | 12006600 | SCREW (#12006600) |
| 32 | 12006400 | ALUM CRUSH WASHER (#12006400) |
| 33 | 14153601 | OIL LINE (1415 3601) (#14153601) |
| 36 | 14120901 | EXHAUST PIPE RH T,T3,T5,G5,SP,CONV,MILLE GT (#14120901) |
| 37 | 14120906 | EXHAUST PIPE LH T,T3,T5,G5,SP,CONV,MILLE GT (#14120906) |
| 38 | 90718370 | EXHAUST GASKET (#90718370) |
| 39 | 14121200 | SPACER (#14121200) |
| 40 | 17121061 | FLANGE (#17121061) |
| 41 | 14615901 | WASHER (#14615901) |
| 42 | 92602208 | NUT (#92602208) |
| 43 | 17123962 | EXHAUST CROSSOVER (#17123962) CHROME |
| 44 | 17123062 | MUFFLER RH SP (#17123062) |
| 45 | 17122962 | MUFFLER LH SPNT (#17122962) |
| 46 | 14126900 | CLAMP CHROME (#14126900) USE 30123430 |
| 47 | 14123400 | CLAMP CHROME (#14123400) |
| 48 | 98054420 | BOLT (#98054420) |
| 49 | 95021108 | WASHER (#95021108) |
| 51 | 91551081 | GROMMET (#91551081) |
| 52 | 17128662 | RH MUFFLER PLATE (#17128662) |
| 53 | 17128762 | LH MUFFLER PLATE (#17128762) |
| 56 | 28150560 | CHECK VALVE (#28150560) |
| 57 | 14609650 | TIE WRAP (#14609650) |
