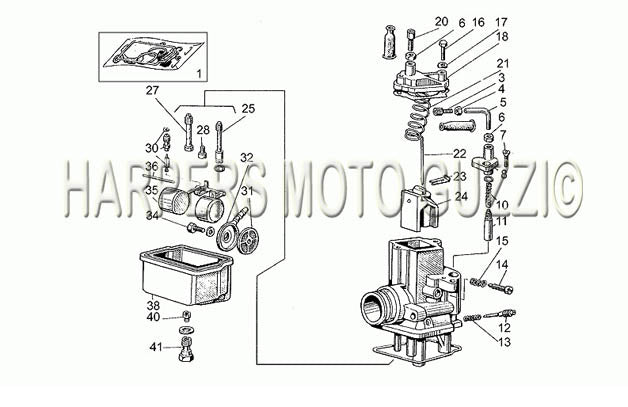

1982 1986 V 35 C V 50 C 350 Carburetors V35c
| Position | Part Number | Description |
|---|---|---|
| 1 | 39939900 | GASKET SET CARB. USE 1793 9950 (#39939900) |
| 3 | 53937200 | ADJUSTER (#53937200) |
| 4 | 19938880 | NUT (#19938880) |
| 5 | 49938900 | PIPE (#49938900) |
| 6 | 12937300 | NUT (#12937300) |
| 7 | 13937900 | SCREW (#13937900) |
| 8 | ||
| 10 | 39937600 | SPRING (#39937600) |
| 11 | 13937800 | VALVE CHOKE (#13937800) |
| 12 | 13936200 | SCREW (#13936200) |
| 13 | 13936300 | SPRING (#13936300) |
| 14 | 13936600 | SCREW (#13936600) |
| 15 | 13936700 | SPRING (#13936700) |
| 16 | 13932800 | SCREW NLA (#13932800) |
| 17 | 13932900 | WASHER (#13932900) |
| 18 | 53935000 | COVER (#53935000) |
| 20 | 12937200 | CABLE ADJUSTER (#12937200) |
| 21 | 53937100 | SPRING (#53937100) |
| 24 | 61934800 | THROTTLE SLIDE (#61934800) |
| 25 | 19936000 | STARTER JET #60 (#19936000) |
| 27 | 19935500 | Atomizer #260A (#19935500) |
| 28 | 19935900 | 148640 (#19935900) |
| 30 | 19934600 | FLOAT NEEDLE VALVE KIT (#19934600) |
| 31 | 43934000 | Fuel Filter Screen (43934000) (#43934000) |
| 32 | 13934600 | CARB.ADAPTER BLACK PLASTIC (#13934600) |
| 34 | 10934900 | BOLT (#10934900) |
| 35 | 61934300 | FLOATS VHB24 (#61934300) |
| 36 | 13933100 | FLOAT PIN (13933100) (#13933100) |
| 38 | 10934400 | FLOAT BOWL (#10934400) |
| 40 | 19935701 | Main jet 108 (#19935701) |
| 41 | 10933700 | PLUG (#10933700) |
