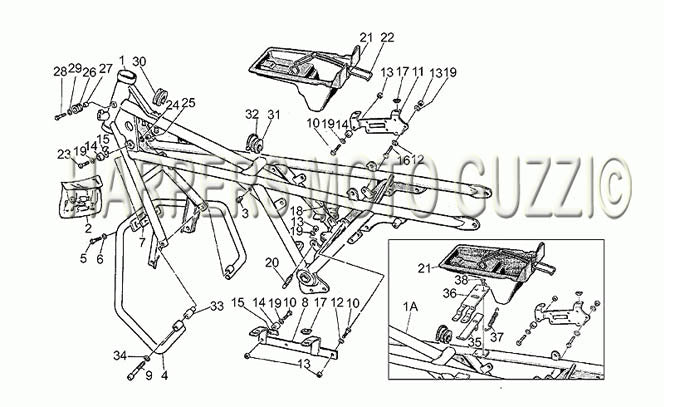

1983 1986 California II 1000 Frame
| Position | Part Number | Description |
|---|---|---|
| 1 | 29400101 | FRAME C (#29400101) |
| 1 | 29400120 | FRAME (#29400120) |
| 1 | 29400121 | #48 (#29400121) |
| 2 | 28782550 | LOCK (#28782550) |
| 3 | 93180080 | PLUG (#93180080) |
| 4 | 29450200 | CRASHBAR NLA (#29450200) |
| 5 | 98054420 | BOLT (#98054420) |
| 6 | 95004208 | WASHER (#95004208) |
| 7 | 17451750 | PLATE (#17451750) |
| 8 | 17424050 | LH SUPPORT PLATE (#17424050) |
| 9 | 98621670 | SCREW (#98621670) |
| 10 | 98052325 | BOLT (#98052325) |
| 11 | 174248501 | RH plate (#174248501) |
| 12 | 95100121 | WASHER (#95100121) |
| 13 | 92630106 | NUT USE 92630707 (#92630106) |
| 14 | 14103800 | BUSH (#14103800) |
| 15 | 93301313 | BRACKET (#93301313) |
| 16 | 98054314 | SCREW (#98054314) |
| 17 | 39461600 | SIDE COVER GROMMET (#39461600) |
| 18 | 17709950 | SUPPORT PLATE (#17709950) |
| 19 | 95000206 | WASHER (#95000206) |
| 20 | 17478550 | PIN (#17478550) |
| 21 | 29479600 | TOOL TRAY (#29479600) |
| 22 | 29479700 | STRAP (#29479700) |
| 23 | 98054320 | BOLT (#98054320) |
| 24 | 95021106 | WASHER, WAVE (#95021106) |
| 25 | 92602206 | NUT (#92602206) USE STHN6MM |
| 26 | 14103400 | TANK BUSHING (#14103400) |
| 27 | 91180810 | SPACER (#91180810) |
| 28 | 98054425 | BOLT (#98054425) |
| 29 | 95100255 | WASHER (#95100255) |
| 30 | 14107100 | RUBBER BUSHING (#14107100) |
| 31 | 14109000 | BUSHING (#14109000) |
| 32 | 14609650 | TIE WRAP (#14609650) |
| 33 | 91181320 | SPACER (#91181320) |
| 34 | 95100415 | WASHER (#95100415) |
| 35 | 29462420 | BRACKET (#29462420) |
| 36 | 294625201 | #36 Plate (#294625201) |
| 37 | 29463120 | SPRING (#29463120) |
| 38 | 98250516 | SCREW (#98250516) |
