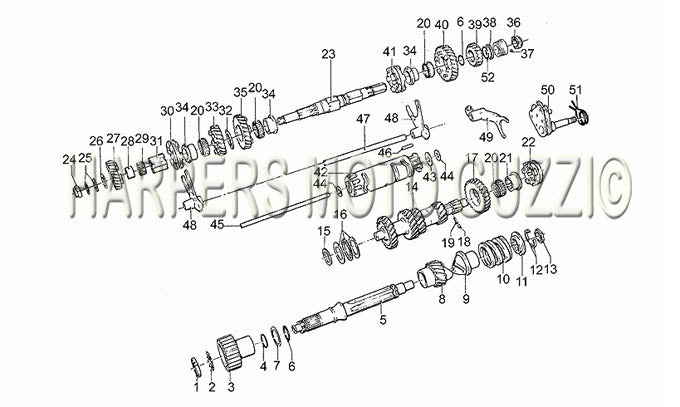

1983 1986 California II 1000 Gear Box
| Position | Part Number | Description |
|---|---|---|
| 1 | 93601022 | LOCK RING (#93601022) |
| 2 | 95028022 | WASHER (#95028022) |
| 3 | 29999350 | CLUTCH USE 28084460 (#29999350) |
| 4 | 90706235 | O RING (#90706235) |
| 5 | 14210702 | TRANSMISSION MAINSHAFT for T3 and later 5 speed #14210702 (#14210702) |
| 6 | 90706203 | O RING (#90706203) |
| 7 | 14218401 | WASHER (#14218401) |
| 8 | 14211110 | GEAR (#14211110) |
| 9 | 14211201 | SLEEVE1 (#14211201) |
| 10 | 13211500 | SPRING (#13211500) |
| 11 | 14211600 | CUP (#14211600) |
| 12 | 12211700 | HALF SECTOR (#12211700) |
| 13 | 14219401 | SPACER (#14219401) |
| 14 | 14210513 | PRIMARY SHAFT USE 28210587 (#14210513) |
| 15 | 18211050 | SHIM 2.0 (#18211050) |
| 15 | 18211051 | SHIM 2.1 (#18211051) |
| 15 | 18211052 | SHIM 2.2 (#18211052) |
| 15 | 18211054 | SHIM 2.4 (#18211054) |
| 16 | 92258525 | BEARING (#92258525) use 976532 |
| 17 | 14212013 | GEAR 5TH (#14212013) |
| 18 | 92296750 | ROLLER (#92296750) |
| 19 | 94321051 | SPRING (#94321051) |
| 20 | 92251030 | CAGE (#92251030) |
| 21 | 14212210 | BUSH (#14212210) |
| 22 | 14231510 | SLEEVE (#14231510) |
| 23 | 14213612 | SHAFT (#14213612) |
| 24 | 14217410 | LOCK NUT (#14217410) |
| 25 | 43083810 | ADJUSTING WASHER (#43083810) |
| 26 | 14215400 | WASHER (#14215400) |
| 27 | 14215110 | GEAR 4TH (#14215110) |
| 28 | 92259017 | RACE (#92259017) |
| 29 | 92251022 | CAGE-BUSHING (#92251022) |
| 30 | 14231012 | SLEEVE (#14231012) |
| 31 | 14232512 | SLEEVE (#14232512) |
| 32 | 14218011 | WASHER (#14218011) |
| 33 | 14214810 | GEAR 3RD GEAR (#14214810) |
| 34 | 14213001 | BUSH (#14213001) |
| 35 | 14214510 | GEAR USE 2821 4587 Z=24 (#14214510) |
| 36 | ||
| 37 | 92295702 | BALL (#92295702) |
| 38 | 14217300 | SHIM (#14217300) |
| 39 | 14215213 | GEAR (#14215213) |
| 40 | 14214210 | GEAR 1ST (#14214210) |
| 41 | ||
| 42 | 14234405 | DRUM (#14234405) |
| 43 | 14235500 | WASHER (#14235500) |
| 44 | 55235000 | SHIM 0.6MM (#55235000) |
| 44 | 55235001 | SHIM 0.8MM (#55235001) |
| 44 | 55235002 | SHIM 1.0MM (#55235002) |
| 44 | 55235003 | SHIM 1.2MM (#55235003) |
| 45 | 14234300 | ROD (#14234300) |
| 46 | 14234600 | PIN (#14234600) |
| 47 | 14232400 | ROD (#14232400) |
| 48 | 14230501 | SLIDING FORK (#14230501) |
| 49 | 14231201 | SHIFT FORK (#14231201) |
| 50 | 28236260 | GEAR SELECTOR (#28236260) USE 03236250 |
| 51 | 28238261 | SHIFT RETURN SPRING (#28238261) |
| 52 | 90706219 | O RING (#90706219) |
