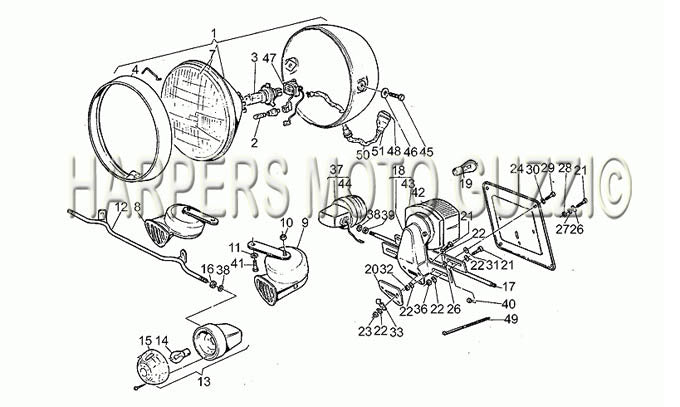

1983 1986 California II 1000 Headlight Horn
| Position | Part Number | Description |
|---|---|---|
| 1 | 29740500 | HEADLIGHT CA II,III 1100 (#29740500) |
| 1 | 29740530 | HEADLAMP C (#29740530) |
| 2 | 93450119 | BULB 12V (#93450119) USE 163015 |
| 3 | 93450232 | CAL H/L BULB 60/55 (#93450232) USE 292723 |
| 8 | 29743753 | HORN-LOW (#29743753) |
| 9 | 29743752 | HORN-HIGH (#29743752) |
| 10 | 92781062 | NUT (#92781062) |
| 11 | 95021108 | WASHER (#95021108) |
| 12 | 63751321 | BRKT (#63751321) |
| 13 | 14750682 | FT T/S ASSY (#14750682) |
| 13 | 19750652 | DIREC.SIGNAL (#19750652) |
| 13 | 19750653 | 19750652 (#19750653) |
| 14 | 93450129 | BULB (#93450129) |
| 15 | 39753770 | INDICATOR LENS (#39753770) |
| 16 | 92602411 | NUT (#92602411) |
| 17 | 18753501 | REAR T/S MOUNTNG BRKT W/T/SIG STEM/CHROME (#18753501) |
| 18 | 14474901 | LAMP (#14474901) |
| 19 | 93450224 | BULB T.L. (#93450224) |
| 20 | 10475900 | GASKET (#10475900) |
| 21 | 98054316 | BOLT (#98054316) USE STHB6X16 |
| 22 | 95000206 | WASHER (#95000206) |
| 23 | 92630106 | NUT USE 92630707 (#92630106) |
| 24 | 10474600 | PLATE (#10474600) |
| 26 | 93110060 | RUBBER WASHER (#93110060) |
| 27 | 95100141 | WASHER (#95100141) |
| 29 | 98054220 | BOLT (#98054220) |
| 30 | 95000205 | WASHER (#95000205) |
| 31 | 95100059 | WASHER (#95100059) |
| 32 | 92630105 | NUT (#92630105) |
| 33 | 92602206 | NUT (#92602206) USE STHN6MM |
| 33 | 93301313 | BRACKET (#93301313) |
| 37 | 14751682 | LR T/S LAMP (#14751682) |
| 37 | 17751652 | RR T/S LAMP (#17751652) |
| 37 | 17751653 | LR T/S LAMP (#17751653) |
| 38 | 14018400 | WASHER (#14018400) |
| 39 | 19742050 | NUT (#19742050) |
| 40 | 93180110 | PLUG (#93180110) |
| 41 | 98054416 | BOLT (#98054416) |
| 42 | 17741701 | Reflector (#17741701) |
| 43 | 17740900 | Taillight assy (#17740900) |
| 44 | 39753771 | TURN SIGNAL LENS (#39753771) |
| 45 | 98054520 | BOLT (#98054520) |
| 46 | 95100255 | WASHER (#95100255) |
| 47 | ||
| 48 | 17755860 | 4 PIN CONNECTOR (#17755860) |
| 49 | 14609650 | TIE WRAP (#14609650) |
| 50 | 29746900 | H/L HARNESS (#29746900) |
| 51 | 17755760 | CAP (#17755760) |
