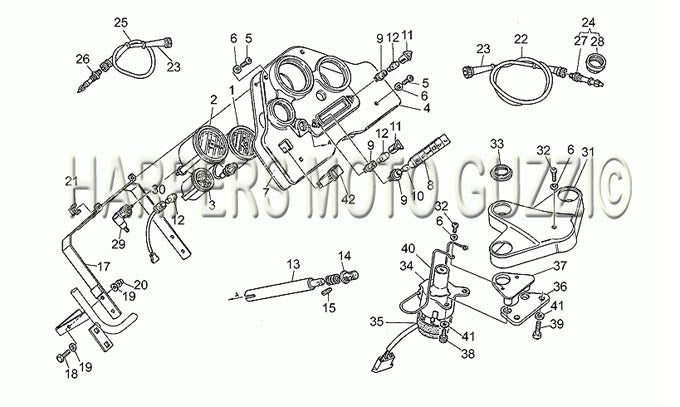

1983 1994 Le Mans 1000 Dashboard 1990
| Position | Part Number | Description |
|---|---|---|
| 1 | 29761560 | SPEEDO KPH (#29761560) |
| 2 | 28767250 | TACH (#28767250) |
| 3 | 29784960 | VOLTMETER (#29784960) |
| 4 | 28764890 | DASH PANEL B (#28764890) |
| 5 | 98230620 | ALLEN BOLT (#98230620) |
| 6 | 95001206 | WASHER (#95001206) |
| 7 | 28764190 | PLATE A (#28764190) |
| 8 | 28766950 | INST PANEL (#28766950) |
| 9 | 19768680 | BULB HOLDER (#19768680) |
| 10 | 93450140 | BULB (93450140) (#93450140) USE 164634 |
| 11 | 65758970 | GREEN INDICATOR LENS (#65758970) |
| 12 | 17762150 | SPEEDO LITES USE 93450120 OR 93450119 (#17762150) |
| 13 | 28781090 | H/L ADJ ROD (#28781090) |
| 14 | 28780890 | KNOB ASSY (#28780890) |
| 15 | 98460112 | SET SCREW (#98460112) |
| 17 | 285720901 | #17 Support (#285720901) |
| 18 | 98054316 | BOLT (#98054316) USE STHB6X16 |
| 19 | 95000206 | WASHER (#95000206) |
| 20 | 92602206 | NUT (#92602206) USE STHN6MM |
| 21 | 92660601 | CAGE NUT (#92660601) |
| 22 | 28760410 | CABLE SPEEDO (#28760410) |
| 23 | 17762200 | RUBBER BOOT (#17762200) |
| 24 | ||
| 25 | 19768180 | TACH CABLE V50III,LM IV,TT,CUSTOM (#19768180) |
| 26 | 14769200 | TACH DRIVE (#14769200) |
| 27 | 12763300 | SPEEDOMETER DRIVE GEAR (#12763300) |
| 28 | ||
| 29 | 17768360 | SPEEDO DRIVE GEAR 1185000 (#17768360) |
| 30 | ||
| 31 | 28574790 | COVER A (#28574790) |
| 32 | 98230612 | ALLEN SCREW (#98230612) |
| 33 | 29573860 | GROMMET (#29573860) |
| 34 | 66736830 | STRG LOCK ASSY A (#66736830) |
| 35 | 29731460 | SWITCH HARNESS (#29731460) |
| 36 | 28782390 | SWITCH SUPPORT (#28782390) |
| 37 | 28783690 | LOCK GUARD (#28783690) |
| 38 | 97260430 | BOLT A (#97260430) |
| 39 | 97260425 | SHEAR BOLT (#97260425) |
| 40 | 28738290 | CABLE GUARD A (#28738290) |
| 41 | 95000208 | WASHER (#95000208) |
| 42 | 28745761 | HAZARD SWITCH (#28745761) |
