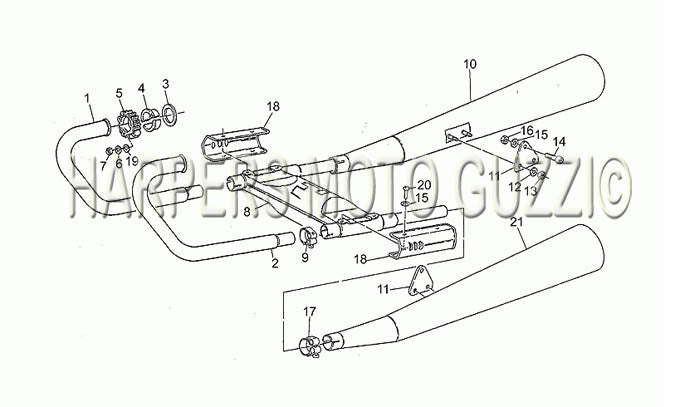

1983 1994 Le Mans 1000 Exhaust Unit
| Position | Part Number | Description |
|---|---|---|
| 1 | 28120950 | RH EXHUAST PIPELM3, 1000S (#28120950) |
| 1 | 28120960 | RH EXHAUST PIPE - LM1000 (#28120960) |
| 2 | 28120951 | LH EXHAUST PIPE LM3, 1000S (#28120951) |
| 2 | 28120961 | LH EXHAUST PIPE - LM1000 (#28120961) |
| 3 | 90718370 | EXHAUST GASKET (#90718370) |
| 4 | 14121200 | SPACER (#14121200) |
| 5 | 14121000 | FLANGE (EX. NUT (#14121000) |
| 5 | 17121061 | FLANGE (#17121061) |
| 6 | 14615901 | WASHER (#14615901) |
| 7 | 92781081 | CAP NUT (#92781081) USE STCN8MM |
| 7 | 92781082 | ACORN NUT (#92781082) |
| 8 | 28123960 | EXHAUST CROSSOVER 1000S, LM1000 (#28123960) |
| 9 | 14126900 | CLAMP CHROME (#14126900) USE 30123430 |
| 9 | 28126960 | CLAMP BLACK (#28126960) |
| 10 | 14123070 | MUFFLER RH 1000S BLACK (#14123070) |
| 10 | 28123060 | MUFFLER RLM I RH M BLACK (#28123060) |
| 10 | 28123079 | MUFFLER (#28123079) USE 14123070 |
| 11 | 28128660 | PLATE (#28128660) |
| 12 | 95021108 | WASHER (#95021108) |
| 13 | 92602208 | NUT (#92602208) |
| 14 | 98822425 | SCREW (#98822425) |
| 15 | 61270300 | WASHER (#61270300) |
| 17 | 14123400 | CLAMP CHROME (#14123400) |
| 17 | 28123460 | CLAMP BLACK (#28123460) |
| 18 | 28121960 | MUFFLER GRILL BLACK (#28121960) |
| 18 | ||
| 19 | ||
| 20 | 98326009 | SCREW (#98326009) |
| 21 | 14122970 | MUFFLER LH 1000 S (#14122970) |
| 21 | 28122960 | MUFFLER LM 1000 LH (#28122960) |
| 21 | 28122979 | USE 14122970 (#28122979) |
