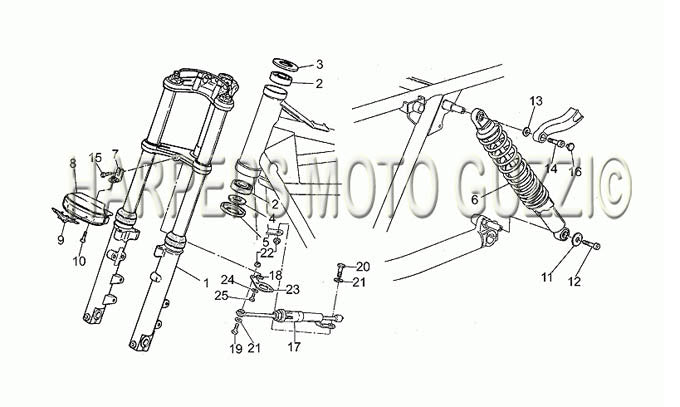

1985 1988 850 T5 III Civilian Front Rear Shock Absorber
| Position | Part Number | Description |
|---|---|---|
| 1 | 28490315 | #01 Front fork (#28490315) |
| 1 | 28490342 | #01 Front fork (#28490342) |
| 2 | 92249225 | TAPERED ROLLER BRNG (#92249225) |
| 3 | 14494600 | CUP (#14494600) |
| 4 | 14516700 | SHIM (#14516700) |
| 5 | 14517000 | RING DUST SEAL (#14517000) |
| 6 | 28550240 | KONI SHOCK SP3, CAL III, MILLE GT, STRADA (#28550240) |
| 7 | 28578810 | BRACKET (#28578810) |
| 8 | 62497820 | COVER ACROSS FRONT FORKS (#62497820) |
| 9 | 29482000 | BADGE NLA (#29482000) |
| 10 | 98326016 | SCREW, PAN HEAD (#98326016) |
| 11 | 95100239 | WASHER (#95100239) |
| 12 | 98074416 | BOLT (#98074416) |
| 13 | 95000208 | WASHER (#95000208) |
| 14 | 98822425 | SCREW (#98822425) |
| 15 | 98054320 | BOLT (#98054320) |
| 16 | 93180206 | RUBBER PLUG (#93180206) |
| 17 | 17530260 | STEERING DAMPER (#17530260) |
| 18 | 95100121 | WASHER (#95100121) |
| 19 | 98052325 | BOLT (#98052325) |
| 21 | 95000206 | WASHER (#95000206) |
| 22 | 92630106 | NUT USE 92630707 (#92630106) |
| 23 | 28528950 | PLATE (#28528950) |
| 24 | 95021106 | WASHER, WAVE (#95021106) |
| 25 | 98054314 | SCREW (#98054314) |
