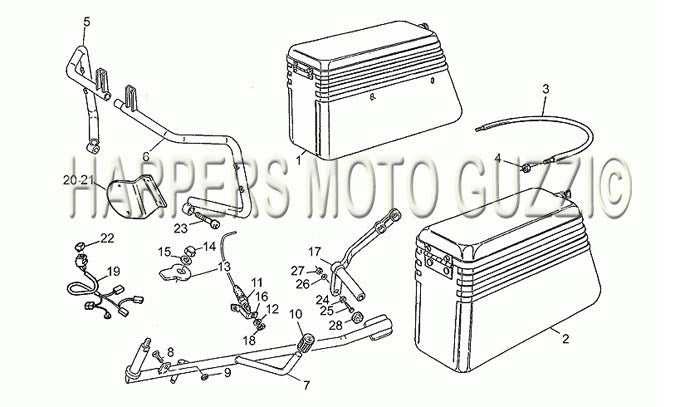

1985 1989 850 T5 Police Saddlebags Kit 850t5 Carab 1989
| Position | Part Number | Description |
|---|---|---|
| 1 | 28482580 | #01 RH side case assy.,Carab.blue (#28482580) |
| 2 | 28485780 | #02 LH side case assy.,Carab.blue (#28485780) |
| 3 | 28486880 | #26 Side case connect.crosspiece (#28486880) |
| 4 | 92630508 | NUT (#92630508) |
| 5 | 28450347 | #18 RH front bumper (#28450347) |
| 6 | 28450447 | #19 LH front bumper (#28450447) |
| 7 | 29432050 | SIDE STAND B (#29432050) |
| 8 | 98054216 | SCREW (#98054216) |
| 9 | 92602205 | NUT (#92602205) |
| 10 | 13432640 | CENTER STAND/SIDE STAND RUBBER (#13432640) |
| 11 | 29759150 | SWITCH (#29759150) |
| 12 | 61270300 | WASHER (#61270300) |
| 13 | 13432741 | LUG BRACKET (#13432741) |
| 14 | 92602210 | NUT (#92602210) |
| 15 | 95004210 | WASHER (#95004210) |
| 16 | 29433850 | BRACKET (#29433850) |
| 17 | 28446047 | #30 LH footrest (#28446047) |
| 18 | ||
| 19 | 28757847 | #19 Stand switch wiring (#28757847) |
| 20 | 28744247 | #20 RH support (#28744247) |
| 21 | 28744347 | #21 LH support (#28744347) |
| 22 | 29732550 | RELAY (#29732550) |
| 23 | 98621650 | SCREW (#98621650) |
| 24 | 39103500 | PLATE (#39103500) |
| 25 | 98054316 | BOLT (#98054316) USE STHB6X16 |
| 26 | 61013800 | SPRING WASHER (#61013800) |
| 27 | 92601206 | NUT (#92601206) |
| 28 | 39103400 | RUBBER PAD FOR GAS TANK (#39103400) |
