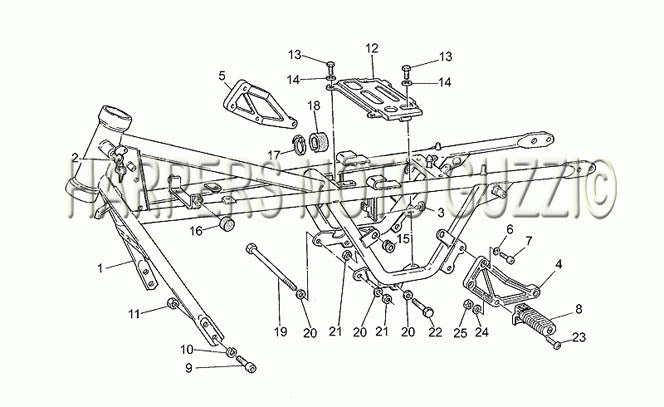

1986 1990 V 35 Florida 350 Frame
| Position | Part Number | Description |
|---|---|---|
| 1 | 23400110 | #01 Frame (#23400110) |
| 2 | 19782520 | LOCK CYLINDER (#19782520) |
| 3 | 19705900 | PLUG (#19705900) |
| 4 | 23446010 | #01 LH footrest support (#23446010) |
| 5 | 23443510 | #02 RH footrest support (#23443510) |
| 6 | 14615901 | WASHER (#14615901) |
| 7 | 98622416 | SCREW (#98622416) |
| 8 | 23442310 | #26 Rear footrest (#23442310) |
| 9 | 98622525 | BOLT (#98622525) |
| 10 | 95120105 | WASHER (#95120105) |
| 11 | 92602210 | NUT (#92602210) |
| 12 | 27418210 | BATTERY TRAY (#27418210) |
| 13 | 98054418 | BOLT (#98054418) |
| 14 | 95004208 | WASHER (#95004208) |
| 15 | 91551085 | RUBBER BLOCK USE 9155 1086 (#91551085) |
| 16 | 39103400 | RUBBER PAD FOR GAS TANK (#39103400) |
| 17 | 14609650 | TIE WRAP (#14609650) |
| 18 | 28109040 | BUFFER (#28109040) |
| 19 | 98110199 | ROD (#98110199) |
| 20 | 95004210 | WASHER (#95004210) |
| 22 | 98052555 | BOLT (#98052555) |
| 23 | 98231025 | BOLT (#98231025) |
| 24 | 14018400 | WASHER (#14018400) |
| 25 | 92601210 | NUT (#92601210) |
