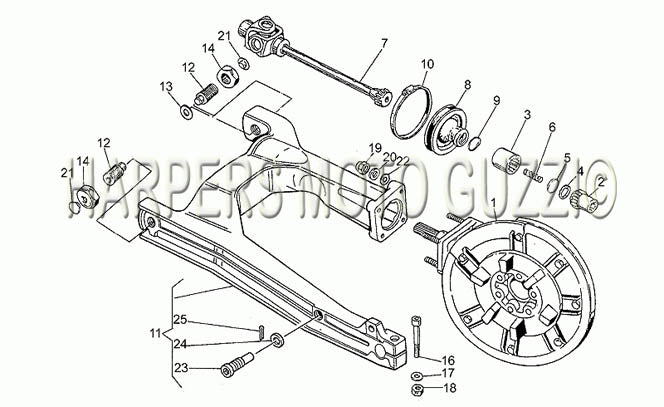

1986 1992 V 65 Florida 650 Swing Arm Rear Wh Spokes
| Position | Part Number | Description |
|---|---|---|
| 1 | 31350231 | #01 Transmission complete (#31350231) |
| 2 | 19327701 | SLEEVE (#19327701) |
| 3 | 19328801 | SLEEVE (#19328801) |
| 4 | 90272023 | CIRCLIP (#90272023) |
| 5 | 19327601 | DISC (#19327601) |
| 6 | 94321099 | SPRING (#94321099) |
| 7 | 23328081 | U-JOINT ASSY C (#23328081) |
| 8 | 23548080 | BELLOWS (#23548080) |
| 9 | 23548180 | SPRING (#23548180) |
| 10 | 93305074 | BOOT CLAMP (#93305074) |
| 11 | 27540211002 | Swing arm (#27540211002) |
| 12 | 19547000 | PIVOT PIN (#19547000) |
| 13 | 35214300 | WASHER (#35214300) |
| 14 | 14547800 | NUT (#14547800) |
| 16 | 98820545 | ALLEN BOLT (#98820545) |
| 17 | 95004210 | WASHER (#95004210) |
| 18 | 92602210 | NUT (#92602210) |
| 19 | 92781082 | ACORN NUT (#92781082) |
| 20 | 14615901 | WASHER (#14615901) |
| 21 | 93180105 | PLUG (#93180105) |
| 22 | ||
| 23 | 31544160 | #23 Pin (#31544160) |
| 24 | 95100523 | WASHER (#95100523) |
| 25 | 95500222 | SPLIT PIN (#95500222) |
