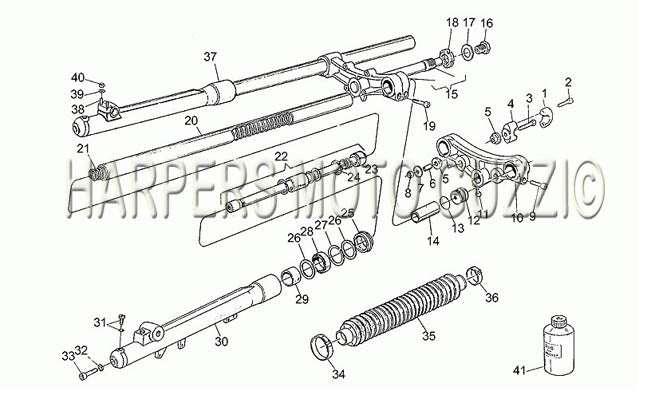

1987 1990 NTX 350 Front Fork
| Position | Part Number | Description |
|---|---|---|
| 1 | 27530501 | UPPER CLAMP (#27530501) |
| 2 | 98622430 | SCREW (#98622430) |
| 3 | 66530501 | #03 Screw (#66530501) |
| 4 | 27530502 | LOWER CLAMP (#27530502) |
| 5 | 27530503 | RUBBER SLEEVE A (#27530503) |
| 6 | 27530504 | TUBE (#27530504) |
| 7 | 27530505 | WASHER (#27530505) USE AP8123511 |
| 8 | 27530506 | NUT (#27530506) |
| 9 | 66530504 | #09 Screw (#66530504) |
| 10 | 27493170 | #10 Fork head black (#27493170) |
| 10 | 27793115 | #10 Upper plate (#27793115) |
| 11 | 98682430 | Screw (#98682430) |
| 12 | 27530575 | #12 Plug (#27530575) |
| 13 | 27530576 | #13 O-ring (#27530576) |
| 14 | 27530577 | #14 Pipe (#27530577) |
| 15 | 27494070 | #15 Bottom plate, black (#27494070) |
| 16 | 27530509 | NUT A (#27530509) |
| 17 | 27530510 | WASHER (#27530510) |
| 18 | 27530511 | LOCK NUT (#27530511) |
| 19 | 98620335 | SCREWS (#98620335) |
| 20 | 27525415 | #20 Sleeve (#27525415) |
| 21 | 31526636 | #21 Spring (#31526636) |
| 22 | 27530578 | #22 Plunger, complete (#27530578) |
| 23 | 27530579 | #23 Gasket ring (#27530579) |
| 24 | 27530580 | #24 Stop ring (#27530580) |
| 25 | 29524550 | WIPER RING (#29524550) |
| 26 | 27530582 | #26 Washer (#27530582) |
| 27 | 27530583 | #27 Snap ring (#27530583) |
| 28 | 27530584 | FORK SEAL V1100 SPORT,750 BREVA,LM (#27530584) |
| 29 | 27530585 | #29 Bush (#27530585) |
| 30 | 27522615 | #30 LH sleeve (#27522615) |
| 30 | 27522616 | #30 LH sleeve (#27522616) |
| 31 | 27530523 | BOLT & 0-RING (#27530523) |
| 32 | 27530591 | #32 Washer (#27530591) |
| 33 | 27530592 | #33 Screw (#27530592) |
| 34 | 27530586 | #34 Hose clamp (#27530586) |
| 35 | 27530530 | BOOT (#27530530) |
| 36 | 27530587 | #36 Hose clamp (#27530587) |
| 37 | 27522515 | #37 RH sleeve (#27522515) |
| 37 | 27522516 | #37 RH sleeve (#27522516) |
| 38 | 27530522 | STUD (#27530522) |
| 39 | 27530521 | WASHER (#27530521) |
| 40 | 27530520 | NUT NYLOCK (#27530520) |
| 41 | 27530531 | #41 Engine oil SAE 20 (#27530531) |
