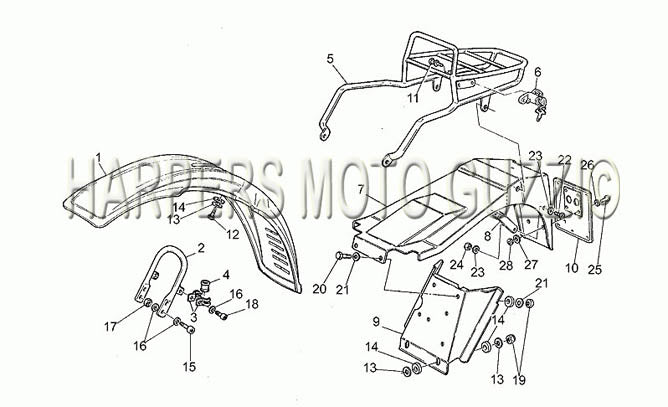

1987 1990 NTX 350 Front Mudguard
| Position | Part Number | Description |
|---|---|---|
| 1 | 27434415 | #01 Front mudguard (#27434415) |
| 1 | 27434416 | #01 Front mudguard (#27434416) |
| 2 | 27436615 | #02 Mudguard support U-bolt (#27436615) |
| 3 | 27651315 | #15 Hose clamp (#27651315) |
| 4 | 17658260 | RUBBER RING (#17658260) |
| 5 | 27466510 | REAR CARRIER B (#27466510) |
| 6 | 66466815 | HELMET LOCK (#66466815) |
| 7 | 27437010 | REAR FENDER A (#27437010) |
| 8 | 27437871 | #08 Support bracket (#27437871) |
| 9 | 27438716 | #02 Splash 'ard (#27438716) |
| 10 | 01474630 | TAG HOLDER (#01474630) |
| 11 | 66468115 | SECURITY BOLT (#66468115) |
| 12 | 98054325 | BOLT (#98054325) |
| 13 | 95100141 | WASHER (#95100141) |
| 14 | 93110060 | RUBBER WASHER (#93110060) |
| 15 | 98610325 | ALLEN BOLT (#98610325) |
| 16 | 61013800 | SPRING WASHER (#61013800) |
| 17 | 92601206 | NUT (#92601206) |
| 18 | 98612312 | ALLEN BOLT (#98612312) |
| 19 | 92630106 | NUT USE 92630707 (#92630106) |
| 20 | 98054330 | BOLT (#98054330) |
| 21 | 95000206 | WASHER (#95000206) |
| 22 | 98074314 | #09 Screw (#98074314) |
| 24 | 92630206 | NUT (#92630206) |
| 25 | 98200410 | SCREW (#98200410) |
| 26 | 95000204 | WASHER (#95000204) |
| 27 | 95129080 | WASHER (#95129080) |
| 28 | 92602204 | NUT (#92602204) |
