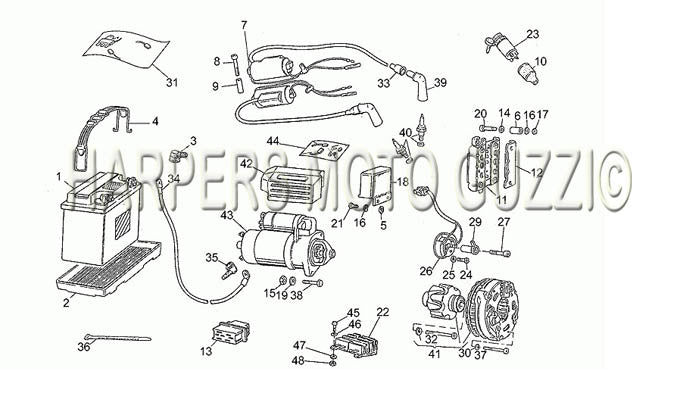

1987 1990 NTX 650 Battery
| Position | Part Number | Description |
|---|---|---|
| 2 | 14707000 | BATTERY TRAY (#14707000) |
| 3 | 23707100 | CABLE BOOT (#23707100) |
| 4 | 27704815 | #03 Plate (#27704815) |
| 5 | 91180605 | SPACER (#91180605) |
| 6 | 91180721 | BUSHING (#91180721) |
| 7 | 19716520 | IGNITION COIL A (#19716520) |
| 8 | 98620240 | ALLEN BOLT (#98620240) |
| 9 | 91180716 | SPACER A (#91180716) |
| 10 | 19741335 | RUBBER CAP (#19741335) |
| 11 | ||
| 12 | 61704200 | COVER (#61704200) |
| 13 | 28712500 | CONNECTOR (#28712500) |
| 14 | 95100141 | WASHER (#95100141) |
| 15 | 92601208 | NUT (#92601208) |
| 16 | 95129100 | WASHER (#95129100) |
| 17 | 92602205 | NUT (#92602205) |
| 18 | 29703800 | REGULATOR (#29703800) USE 040003 |
| 19 | ||
| 20 | 98052245 | BOLT (#98052245) |
| 21 | 98054214 | BOLT (#98054214) |
| 22 | 28703800 | REG (SAPRISA) (#28703800) |
| 23 | 28735360 | SWITCH (#28735360) USE 31735360 |
| 24 | 98325012 | SCREW (#98325012) |
| 25 | 95000205 | WASHER (#95000205) |
| 26 | 27722235 | #26 Pick-up (#27722235) |
| 27 | 98622318 | SCREW (#98622318) |
| 29 | 27721036 | #29 Pick-up rotor (#27721036) |
| 29 | 27721063 | #04 Rotor (#27721063) |
| 30 | 95021105 | LOCK WASHER (#95021105) |
| 31 | ||
| 32 | 14712459 | SCREW ALTERNATOR BOLT (BOSCH) (#14712459) |
| 32 | 28712459 | SCREW (SAPRISA) (#28712459) |
| 33 | 14717600 | SPARK PLUG RUBBER BOOT (#14717600) |
| 34 | 19748000 | CABLE (#19748000) |
| 35 | 19707100 | CAP (#19707100) |
| 36 | 14609650 | TIE WRAP (#14609650) |
| 37 | 98620245 | SCREW (#98620245) |
| 37 | 98620250 | SCREW (#98620250) |
| 38 | 98072435 | BOLT (#98072435) |
| 39 | 27717410 | PLUG BOOT (#27717410) |
| 40 | 31717060 | SPARK PLUG A (#31717060) |
| 41 | 17712400 | ALTERNATOR (#17712400) |
| 41 | ||
| 42 | 19733350 | COVER, SOLENOID NLA 7/15/02 (#19733350) |
| 43 | 30730711 | VALEO STARTER (#30730711) |
| 44 | 14730570 | REV.KIT (#14730570) |
| 44 | 19730580 | BRUSHES (#19730580) |
| 45 | 98054320 | BOLT (#98054320) |
| 46 | 95021106 | WASHER, WAVE (#95021106) |
| 47 | 95000206 | WASHER (#95000206) |
| 48 | 92602206 | NUT (#92602206) USE STHN6MM |
