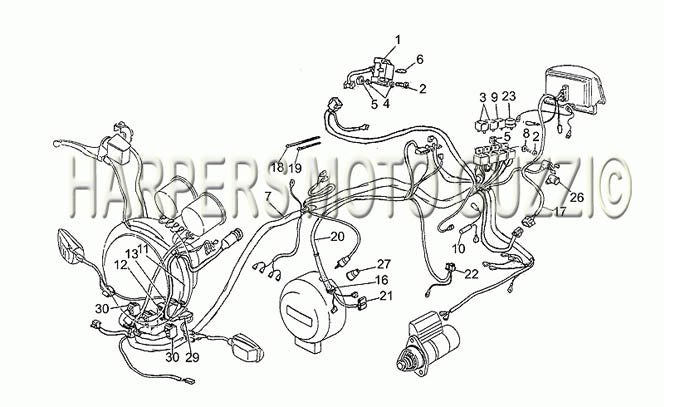

1987 1991 GT 1000 Electrical System
| Position | Part Number | Description |
|---|---|---|
| 1 | 27743050 | FUSEBOX A (#27743050) |
| 2 | 98202516 | SCREWS (#98202516) |
| 3 | 28732560 | RELAY (#28732560) |
| 3 | 30732510 | RELAY (#30732510) |
| 4 | 95100059 | WASHER (#95100059) |
| 5 | 92660501 | CAGE NUT (#92660501) |
| 6 | 28742560 | FUSE 15A (#28742560) use 290860 |
| 7 | 29747150 | HARNESS (#29747150) |
| 7 | 29747170 | WIRING HARNESS A (#29747170) |
| 7 | 29747171 | WIRING HARNESS A (#29747171) |
| 8 | 95004205 | WASHER (#95004205) |
| 9 | 29732550 | RELAY (#29732550) |
| 10 | 28727200 | RESISTANCE (#28727200) |
| 11 | 28747233 | WIRE HARNESS (#28747233) |
| 11 | 28747234 | WIRE HARNESS (#28747234) |
| 11 | 28747235 | #11 Dashboard cable (#28747235) |
| 12 | 14756251 | SOCKET (#14756251) |
| 13 | 17756000 | COVER (#17756000) |
| 16 | 19007700 | RUBBER (#19007700) |
| 17 | 28747333 | T/LAMP HARNESS (#28747333) |
| 18 | 14609650 | TIE WRAP (#14609650) |
| 19 | 49609601 | TIE STRAP (#49609601) |
| 20 | 28726333 | WIRE HARNESS (#28726333) |
| 21 | 61712500 | CONNECTOR (#61712500) |
| 22 | 61712600 | CONNECTOR (#61712600) |
| 23 | 17750520 | TURN SIGNAL FLASHER (#17750520) |
| 26 | 12735100 | CAP (#12735100) |
| 27 | 12717600 | Cap (#12717600) |
| 29 | 17756060 | CAP (#17756060) |
| 30 | 65723001 | CONNECTOR (#65723001) |
