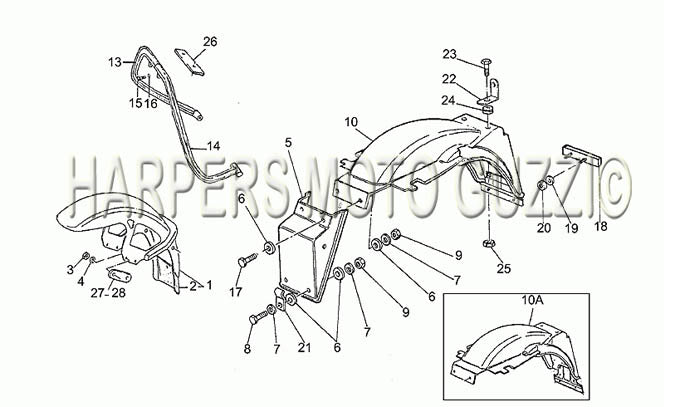

1987 1991 GT 1000 Front Rear Mudguards
| Position | Part Number | Description |
|---|---|---|
| 1 | 28434300001 | #01 Front mudard (#28434300001) |
| 1 | 28434329 | #01 Front mudguard (#28434329) |
| 1 | 28434333 | FT.FENDER-BLACK MILLE GT 1000 GT (#28434333) |
| 1 | 28434334 | FRT FENDER RED MILLE GT 1000GT (#28434334) |
| 2 | 28436945 | FENDER FLAP A (#28436945) |
| 3 | 92630508 | NUT (#92630508) |
| 4 | 61270300 | WASHER (#61270300) |
| 5 | 14438700 | SPLASH GUARD (#14438700) |
| 6 | 93110060 | RUBBER WASHER (#93110060) |
| 7 | 95100141 | WASHER (#95100141) |
| 8 | 98054320 | BOLT (#98054320) |
| 9 | 92630106 | NUT USE 92630707 (#92630106) |
| 10 | 28437010 | REAR FENDER A (#28437010) |
| 10 | 28437033 | REAR FENDER-BLA A (#28437033) |
| 13 | 17450300 | SAFETY BAR RH (#17450300) |
| 14 | 17450400 | SAFETY BAR LH (#17450400) |
| 15 | 98054420 | BOLT (#98054420) |
| 16 | 95004208 | WASHER (#95004208) |
| 17 | 98054325 | BOLT (#98054325) |
| 18 | 28745800 | REAR REFLECTOR (#28745800) |
| 19 | 95129080 | WASHER (#95129080) |
| 20 | 92602204 | NUT (#92602204) |
| 21 | 93301313 | BRACKET (#93301313) |
| 22 | 28438000 | PLATE HOLDER BRACKET (#28438000) |
| 23 | 98326016 | SCREW, PAN HEAD (#98326016) |
| 26 | 17451750 | PLATE (#17451750) |
| 27 | 19436600 | PLATE (#19436600) |
| 28 | 28436633 | #28 Plate (#28436633) |
