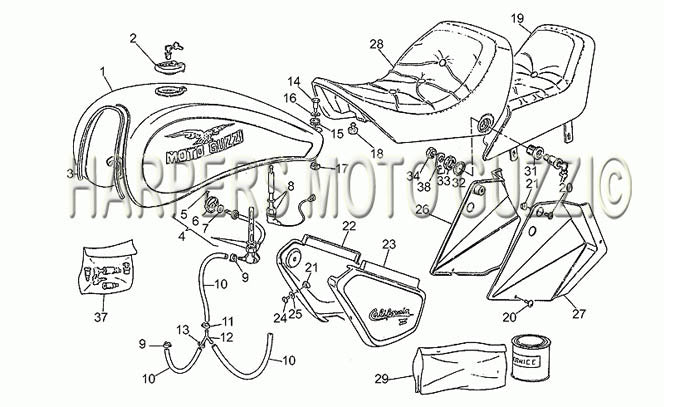

1988 1990 California III Full Fairing 1000 Body
| Position | Part Number | Description |
|---|---|---|
| 1 | 291002501 | Fuel tank (#291002501) |
| 1 | 29100270 | FUEL-TANK -BURGU 29100270 (#29100270) |
| 1 | 29100271 | FUEL-TANK TWO T 29100271 (#29100271) |
| 2 | 30103960 | GAS CAP (#30103960) |
| 3 | ||
| 4 | 29105450 | PETCOCK (#29105450) |
| 5 | 98200306 | SCREW (#98200306) |
| 6 | 29105750 | KNOB (#29105750) |
| 7 | 29105850 | NYLON GASKET (#29105850) |
| 8 | 29103050 | LEVEL SENDER (#29103050) |
| 9 | 28108410 | HOSE CLAMP (#28108410) |
| 10 | 00823956080 | OIL BREATHER HOSE (#00823956080) |
| 11 | 93305017 | HOSE CLAMP (#93305017) |
| 12 | 29106551 | FUEL HOSE (#29106551) |
| 13 | 29108550 | HOSE CLAMP (#29108550) |
| 14 | 29103250 | BOLT (#29103250) |
| 15 | 91551131 | GROMMET (#91551131) |
| 16 | 95000210 | WASHER (#95000210) |
| 17 | 92660801 | CAGE NUT (#92660801) |
| 18 | 29461650 | RUBBER PAD (#29461650) |
| 19 | 29464050 | SEAT REAR CAL3 INJ. (#29464050) |
| 20 | 98326016 | SCREW, PAN HEAD (#98326016) |
| 21 | 92660601 | CAGE NUT (#92660601) |
| 22 | 294762501 | RH side panel (#294762501) |
| 22 | 29476270 | RH COVER (#29476270) |
| 22 | 29476271 | COVER RH B (#29476271) |
| 23 | 294763601 | #23 LH side panel (#294763601) |
| 23 | 29476370 | COVER LH (#29476370) |
| 23 | 29476371 | LH COVER (#29476371) |
| 25 | 66478610 | WASHER (#66478610) |
| 26 | ||
| 27 | 29459101001 | #27 LH side panel (#29459101001) |
| 28 | 29460680 | SEAT CAL 3 (#29460680) |
| 29 | 29923350 | DECAL SET GOLD/ A (#29923350) |
| 29 | 29923351 | DECAL SET (#29923351) |
| 31 | 29573460 | LOCK BEZEL NUT (#29573460) |
| 32 | 95021019 | LOCK WASHER (#95021019) |
| 33 | 92608618 | NUT A (#92608618) |
| 34 | 19468748 | Nut (#19468748) |
| 37 | 29736961 | GAS CAP W/LOCK & KEY (#29736961) |
| 38 | 29462460 | LOCK LEVER A (#29462460) |
