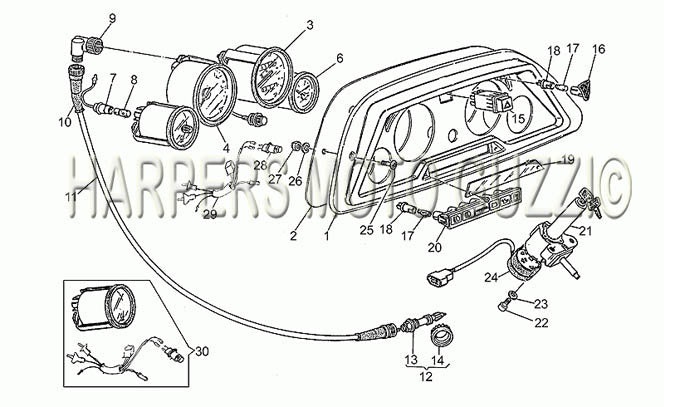

1988 1990 California III Full Fairing 1000 Dashboard
| Position | Part Number | Description |
|---|---|---|
| 1 | 29766260 | GAUGE PANEL A (#29766260) |
| 2 | 31764140 | #02 Instrument support (#31764140) |
| 3 | 29761560 | SPEEDO KPH (#29761560) |
| 4 | 29767260 | TACH BLACK FACE MPH (#29767260) |
| 6 | 29784960 | VOLTMETER (#29784960) |
| 7 | ||
| 8 | 93450120 | BULB ALL GLASS (#93450120) |
| 9 | 17768360 | SPEEDO DRIVE GEAR 1185000 (#17768360) |
| 10 | 17762200 | RUBBER BOOT (#17762200) |
| 11 | 28760410 | CABLE SPEEDO (#28760410) |
| 12 | ||
| 13 | 12763300 | SPEEDOMETER DRIVE GEAR (#12763300) |
| 14 | ||
| 15 | 28745761 | HAZARD SWITCH (#28745761) |
| 16 | 65758970 | GREEN INDICATOR LENS (#65758970) |
| 17 | 19768680 | BULB HOLDER (#19768680) |
| 18 | 93450140 | BULB (93450140) (#93450140) USE 164634 |
| 19 | 29781160 | CLEAR COVER (#29781160) |
| 20 | 27766985 | LAMP PANEL A (#27766985) |
| 21 | 29782560 | IGNITION SWITCH (#29782560) |
| 22 | 98622414 | ALLEN BOLT A (#98622414) |
| 23 | 61270300 | WASHER (#61270300) |
| 24 | 29731460 | SWITCH HARNESS (#29731460) |
| 25 | 98326021 | SCREW (#98326021) |
| 26 | 95000206 | WASHER (#95000206) |
| 27 | 92630106 | NUT USE 92630707 (#92630106) |
| 28 | 19761117 | #28 Button (#19761117) |
| 29 | 19761217 | #29 Adapter wiring (#19761217) |
| 30 | 29783061001 | Clock assy. (#29783061001) |
