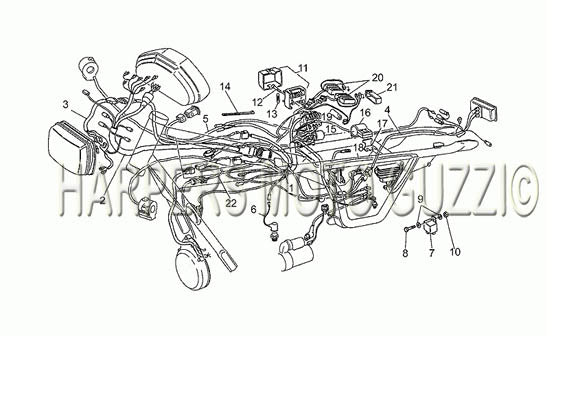

1990 1992 Targa 750 Electrical System
| Position | Part Number | Description |
|---|---|---|
| 1 | 27747122 | #01 Electrical system (#27747122) |
| 2 | 27747222 | #02 Dashboard cable (#27747222) |
| 3 | 19747435 | H/L SUB-HARNESS A (#19747435) |
| 4 | 31747315 | #04 Taillight wiring harn. (#31747315) |
| 5 | 31753015 | #05 Intermittence wiring (#31753015) |
| 6 | 19724560 | OIL SENDER WIRE A (#19724560) |
| 7 | 19732500 | HORN, HL OR STARTER RELAY (#19732500) |
| 8 | 98054212 | BOLT (#98054212) |
| 9 | 95100059 | WASHER (#95100059) |
| 10 | 92602205 | NUT (#92602205) |
| 11 | 19743000 | FUSE BOX (#19743000) |
| 12 | 98202525 | SCREW (#98202525) |
| 13 | 17742550 | FUSE 16 AMP (#17742550) |
| 14 | 14609650 | TIE WRAP (#14609650) |
| 15 | 17750520 | TURN SIGNAL FLASHER (#17750520) |
| 16 | 17751200 | FLASHER HOLDER (#17751200) |
| 17 | 19750435 | GUIDE PLATE (#19750435) |
| 18 | 27725820 | #18 Alternator-regulator wiring (#27725820) |
| 19 | 27710435 | CONDENSER A (#27710435) |
| 20 | 23721494 | #20 Electronic control unit (#23721494) |
| 21 | 27723835 | SUPPORT (#27723835) |
| 22 | 31722140 | #16 H.T. wiring (#31722140) |
