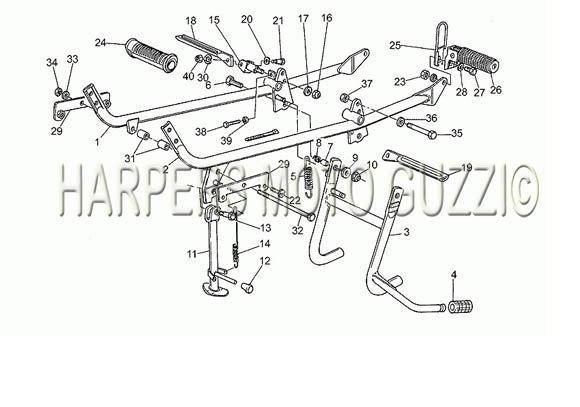

1990 1992 Targa 750 Footrests Stands
| Position | Part Number | Description |
|---|---|---|
| 1 | 31420315 | #01 RH craddle arm (#31420315) |
| 2 | 31422115 | #02 LH craddle arm (#31422115) |
| 3 | 23430340 | CENTER STAND A (#23430340) |
| 4 | 13432640 | CENTER STAND/SIDE STAND RUBBER (#13432640) |
| 5 | 12434001 | SPRING (#12434001) |
| 6 | 98054530 | BOLT (#98054530) |
| 7 | 91181114 | SPACER (#91181114) |
| 8 | 94322215 | SPRING-ROCKER (#94322215) |
| 9 | 95000210 | WASHER (#95000210) |
| 10 | 92630510 | NUT (#92630510) |
| 11 | 27432085 | #11 Lateral stand (#27432085) |
| 12 | 19433000 | PLUG (#19433000) |
| 13 | 99105129 | BOLT (#99105129) |
| 14 | 19434000 | SPRING (#19434000) |
| 15 | 27442020 | SUPPORT (#27442020) |
| 17 | 95004210 | WASHER (#95004210) |
| 18 | 28440710 | RF ARM (#28440710) |
| 19 | 28441810 | foot peg bracket (#28441810) |
| 20 | 95129115 | WASHER (#95129115) |
| 21 | 98074425 | BOLT BLACK (#98074425) |
| 22 | 98326016 | SCREW, PAN HEAD (#98326016) |
| 23 | 92601210 | NUT (#92601210) |
| 24 | 28443201 | 28443201 Rubber pedal (#28443201) |
| 25 | 27447520 | FOOT CATCH (#27447520) |
| 26 | 27442320 | REAR FOOTREST (#27442320) |
| 27 | 98231022 | ALLEN BOLT A (#98231022) |
| 28 | 14018400 | WASHER (#14018400) |
| 29 | 31579115 | #29 Clamp (#31579115) |
| 30 | 61270300 | WASHER (#61270300) |
| 31 | 19017000 | BUSH (#19017000) |
| 32 | 19429565 | BOLT (#19429565) |
| 34 | 92602210 | NUT (#92602210) |
| 35 | 98052565 | BOLT (#98052565) |
| 38 | 98054322 | BOLT (#98054322) |
| 39 | 92602206 | NUT (#92602206) USE STHN6MM |
| 40 | 92601208 | NUT (#92601208) |
