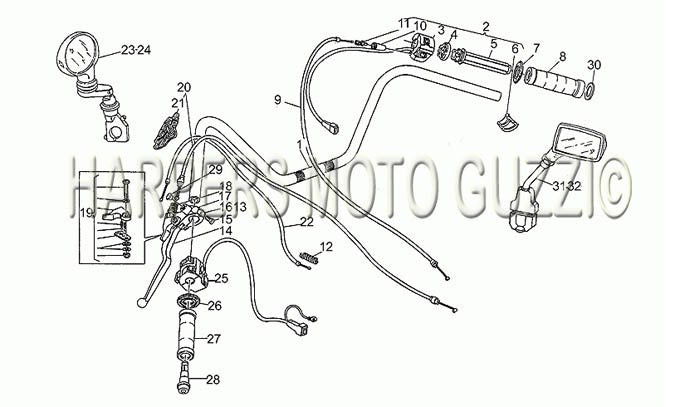

1990 1993 California III Injected 1000 Handlebar Controls
| Position | Part Number | Description |
|---|---|---|
| 1 | 29600360 | HANDLEBAR CALIII (#29600360) |
| 2 | 27603400 | THROTTLE/SWITCH ASS. NLA 7/05 (#27603400) |
| 4 | 27604415 | GUIDE BLOCK (#27604415) |
| 5 | 27603815 | THROTTLE TUBE (#27603815) |
| 6 | 27604515 | CBLE GUIDE (#27604515) |
| 7 | 27603620 | RING (#27603620) |
| 8 | 27603520 | GRIP RH (#27603520) |
| 9 | 29117560 | THROTTLE CABLE CAIII (#29117560) |
| 10 | 27117615 | BOOT (#27117615) |
| 11 | 28607678 | ADJUSTER ASSY (#28607678) |
| 12 | 94321070 | SPRING (#94321070) |
| 13 | 30605530 | CLUTCH LEVER ASSY #30605530) (#30605530) |
| 15 | 27601215 | ALLEN BOLT BLACK (#27601215) |
| 16 | 27601015 | HALF CLAMP (#27601015) |
| 17 | 27601815 | LEVER SUPPORT (#27601815) |
| 18 | 30602500 | ADJUSTER ASSY (#30602500)USE AP8118348 |
| 19 | 27659415 | CHOKE LEVER ASSY (#27659415) |
| 20 | 29093070 | CLUTCH CABLE (#29093070) |
| 21 | 27663815 | CABLE BOOT (#27663815) |
| 22 | 29132860 | CHOKE CABLE CAL III (#29132860) |
| 23 | 29999360 | MIRROR SET (#29999360) |
| 25 | 27738015 | SWITCH (#27738015) |
| 26 | 27603120 | WASHER (#27603120) |
| 27 | 27603020 | GRIP LH (#27603020) |
| 28 | 29602760 | BAR END STABILIZER (#29602760) |
| 29 | 93180080 | PLUG (#93180080) |
| 30 | 29606970 | WASHER (PAIR) (#29606970) |
| 31 | 29769860 | MIRROR RH CAIII LH RECTANGLE EACH (#29769860) |
| 32 | 29769460 | MIRROR LH CAIII RH RECTANGLE EACH (#29769460) |
