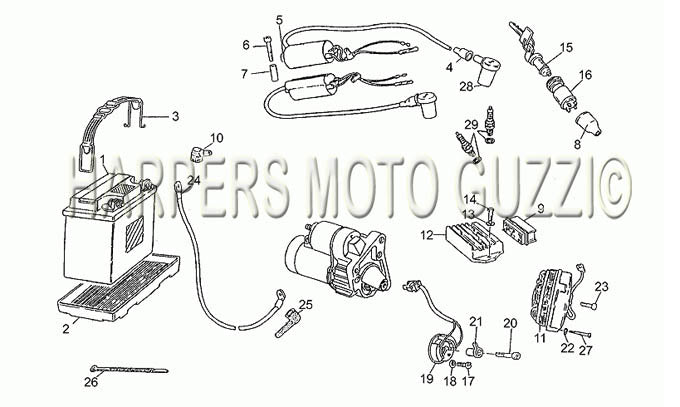

1992 1994 750x Polizia pa 1a Serie 750 Saprisa Alternator
| Position | Part Number | Description |
|---|---|---|
| 1 | 28704545 | #01 Battery VARTA 530.30 12V-30A (#28704545) |
| 2 | ||
| 3 | 27704815 | #03 Plate (#27704815) |
| 4 | 14717600 | SPARK PLUG RUBBER BOOT (#14717600) |
| 5 | 31716560 | COIL LARIO (#31716560) |
| 6 | 98620240 | ALLEN BOLT (#98620240) |
| 7 | 91180721 | BUSHING (#91180721) |
| 8 | 19741336 | 19741335 (#19741336) |
| 9 | 28712500 | CONNECTOR (#28712500) |
| 10 | 23707100 | CABLE BOOT (#23707100) |
| 11 | ||
| 12 | 28703800 | REG (SAPRISA) (#28703800) |
| 13 | 95000206 | WASHER (#95000206) |
| 14 | 98054316 | BOLT (#98054316) USE STHB6X16 |
| 15 | 31735630 | #18 Main switch (#31735630) |
| 16 | 31735330 | #17 Switch (#31735330) |
| 17 | 98290512 | SCREW A (#98290512) |
| 18 | 95000205 | WASHER (#95000205) |
| 19 | 29722270 | ELECTRONIC IGNITION PICKUP (#29722270) |
| 20 | 98622318 | SCREW (#98622318) |
| 21 | 27721063 | #04 Rotor (#27721063) |
| 22 | 95021105 | LOCK WASHER (#95021105) |
| 23 | 98620250 | SCREW (#98620250) |
| 24 | 19748000 | CABLE (#19748000) |
| 25 | 19707100 | CAP (#19707100) |
| 26 | 14609650 | TIE WRAP (#14609650) |
| 27 | 28712459 | SCREW (SAPRISA) (#28712459) |
| 28 | 30717410 | PLUG CAP NGK (#30717410) USE AP8212219 |
| 29 | 31717060 | SPARK PLUG A (#31717060) |
