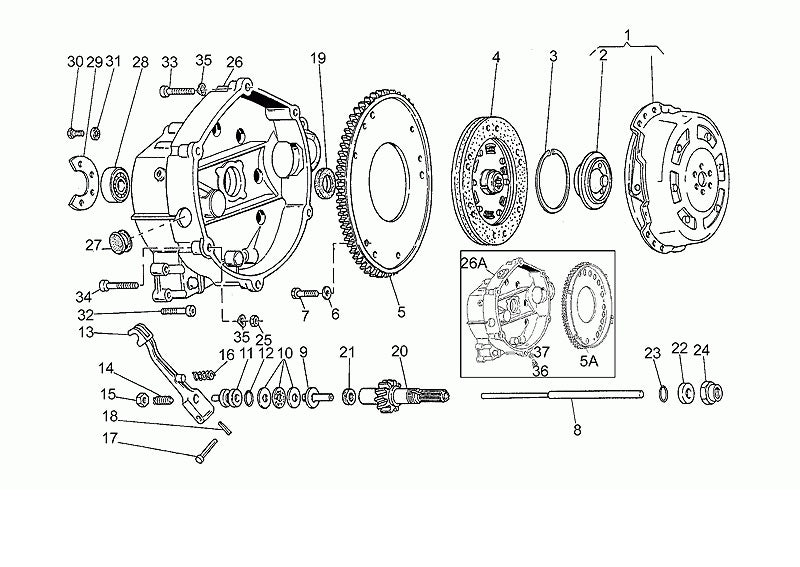

1992 1996 V 75 PA Vecchio Tipo 750 Clutch
| Position | Part Number | Description |
|---|---|---|
| 1 | 27080160 | PRESSURE PLATE (#27080160) |
| 2 | 19083462 | CL CUP (#19083462) |
| 3 | 90272075 | RING (#90272075) |
| 4 | 27084460 | CLUTCH PLATE V65 (#27084460) USE 32084410 |
| 5 | 19067900 | CROWN GEAR (#19067900) |
| 5 | 31067965 | #05 Chain ring Digiplex (#31067965) |
| 6 | 14217901 | LOCK WASHER (#14217901) USE AP8152105 |
| 7 | 98054316 | BOLT (#98054316) USE STHB6X16 |
| 8 | 20085720 | CLUTCH ROD (#20085720) |
| 9 | 14086000 | INNER CLUTCH BODY (#14086000) |
| 10 | 12087001 | THROWOUT BEARING 5 SPEED (12087001) |
| 11 | 14086100 | OUTER CLUTCH BODY (#14086100) |
| 12 | 90706170 | O RING (#90706170) |
| 13 | 14090201 | LEVER (#14090201) |
| 14 | 14090400 | SCREW (#14090400) |
| 15 | ||
| 16 | 94321105 | SPRING (#94321105) |
| 17 | 95780271 | PIN (#95780271) |
| 18 | 95500222 | SPLIT PIN (#95500222) |
| 19 | 90403245 | SEAL RING (#90403245) |
| 20 | 27210760 | COUNTERSHAFT (#27210760) |
| 21 | 90400616 | SEAL (#90400616) |
| 22 | 19213760 | SPACER (#19213760) |
| 23 | 90706235 | O RING (#90706235) |
| 24 | 19356760 | NUT (#19356760) |
| 25 | 92602208 | NUT (#92602208) |
| 26 | 19200463 | Clutch drum MOTOPLAT (#19200463) |
| 26 | 31200464 | Clutch drum, blank DIGIP. (#31200464) |
| 26 | 31200480 | #26 Clutch housing, grey DIGIP. (#31200480) |
| 27 | 93180220 | TIMING HOLE PLUG (#93180220) |
| 28 | 92201225 | BEARING (#92201225) |
| 29 | 19203460 | RETAINER (#19203460) |
| 30 | 98054314 | SCREW (#98054314) |
| 32 | 98620330 | V/COVER BOLT (#98620330) USE 98680330 |
| 33 | 98620435 | SCREW USE 9868 0435 (#98620435) |
| 34 | 98620450 | ALLEN BOLT (#98620450) |
| 35 | 61270300 | WASHER (#61270300) |
| 36 | 31003766 | DRAIN PLUG (#31003766) |
| 37 | 95004210 | WASHER (#95004210) |
