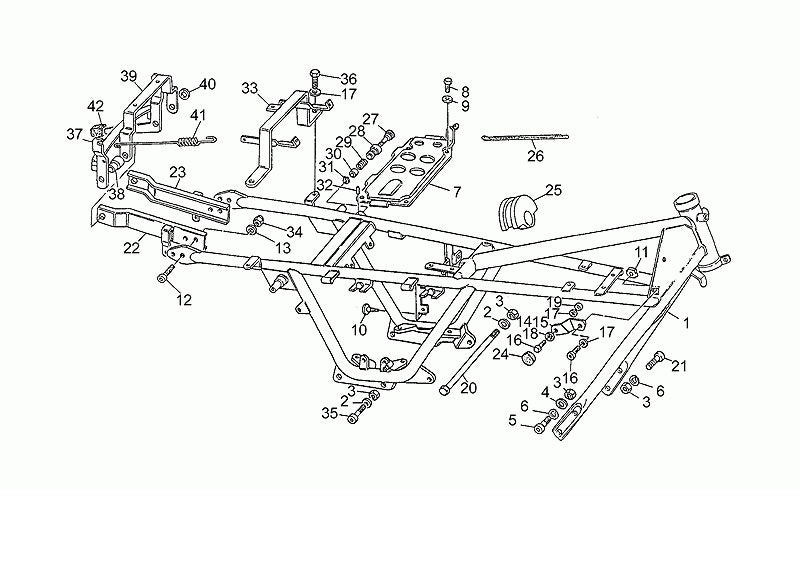

1992 1996 V 75 PA Vecchio Tipo 750 Frame
| Position | Part Number | Description |
|---|---|---|
| 1 | 19400115 | #01 Frame (#19400115) |
| 1 | 19400116 | #01 Frame (#19400116) |
| 2 | 95004210 | WASHER (#95004210) |
| 3 | 92602210 | NUT (#92602210) |
| 4 | 95021110 | WASHER (#95021110) |
| 5 | 98622525 | BOLT (#98622525) |
| 6 | 95120105 | WASHER (#95120105) |
| 7 | 19418200 | PLATE (#19418200) |
| 8 | 98054418 | BOLT (#98054418) |
| 9 | 95004208 | WASHER (#95004208) |
| 10 | 19705900 | PLUG (#19705900) |
| 11 | 92660601 | CAGE NUT (#92660601) |
| 12 | 98054416 | BOLT (#98054416) |
| 13 | 61270300 | WASHER (#61270300) |
| 14 | 23401290 | #14 RH support (#23401290) |
| 15 | 23401390 | #15 LH support (#23401390) |
| 16 | 98054316 | BOLT (#98054316) USE STHB6X16 |
| 17 | 95004206 | WASHER (#95004206) |
| 18 | 39103500 | PLATE (#39103500) |
| 19 | 92630106 | NUT USE 92630707 (#92630106) |
| 20 | 98110199 | ROD (#98110199) |
| 21 | 98620540 | SCREW (#98620540) |
| 22 | 23439190 | #22 RH support (#23439190) |
| 23 | 23439290 | #23 LH support (#23439290) |
| 24 | 39103400 | RUBBER PAD FOR GAS TANK (#39103400) |
| 25 | 14107100 | RUBBER BUSHING (#14107100) |
| 26 | 14609650 | TIE WRAP (#14609650) |
| 27 | 28463045 | #03 Knob (#28463045) |
| 28 | 28462945 | #04 Bush (#28462945) |
| 29 | 94321119 | #05 Spring (#94321119) |
| 30 | 28462645 | SPACER (#28462645) |
| 31 | 90280006 | E CLIP (#90280006) USE 005965 |
| 32 | 35782880 | SCREW (#35782880) |
| 33 | 28463545 | #32 Radio support (#28463545) |
| 34 | 92602208 | NUT (#92602208) |
| 35 | 98052555 | BOLT (#98052555) |
| 36 | 98054318 | BOLT (#98054318) |
| 37 | 23478890 | #37 Release device (#23478890) |
| 38 | 41432100 | SPACER (#41432100) |
| 39 | 23463690 | #33 Radio support (#23463690) |
| 40 | 91180810 | SPACER (#91180810) |
| 41 | 19434000 | SPRING (#19434000) |
| 42 | 14461400 | GRIP (#14461400) |
