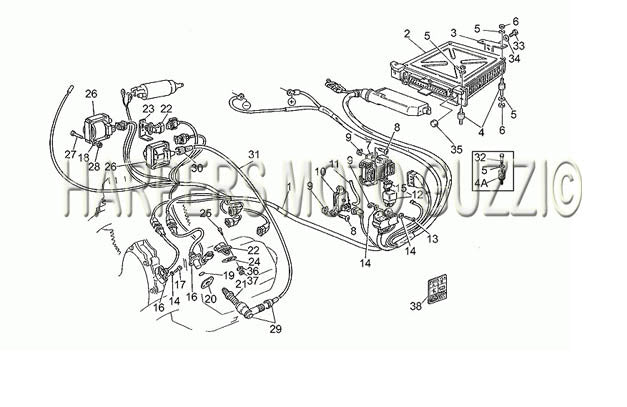

1992 1997 Quota 1000 Electronic Control Unit
| Position | Part Number | Description |
|---|---|---|
| 1 | 30725830 | Injection wiring (#30725830) |
| 2 | 30729531 | Electronic control unit (#30729531) |
| 3 | 30723830 | Bracket (#30723830) |
| 4 | 93211315 | MOUNT A (#93211315) |
| 4 | 93221315 | MOUNT (#93221315) |
| 5 | 95100064 | Washer 5,5X16X0,8 (#95100064) |
| 6 | 92630104 | NUT (#92630104) |
| 7 | 29724460 | IGNITION UNIT C (#29724460) |
| 8 | 98230616 | SCREW (#98230616) |
| 9 | 92660601 | CAGE NUT (#92660601) |
| 10 | 29727061 | PRESSURE SWITCH (#29727061) |
| 11 | 00823946060 | Breather pipe (#00823946060) |
| 13 | 98202516 | SCREWS (#98202516) |
| 14 | 95004205 | WASHER (#95004205) |
| 15 | 28742560 | FUSE 15A (#28742560) use 290860 |
| 16 | 29721660 | SENSOR IGNITION CAM CRANK (#29721660) |
| 17 | 98622210 | SCREW (#98622210) |
| 18 | 95004204 | WASHER (#95004204) |
| 19 | 90706141 | O RING (#90706141) USE 847180 |
| 20 | 29722760 | SENSOR GASKET (#29722760) |
| 21 | 29717060 | SPARK PLUG A (#29717060) |
| 21 | 30717031 | SPARK PLUG A (#30717031) |
| 22 | 30729331 | AIR/OIL TEMP SENSOR (30729331) USE 30729330 (#30729331) |
| 23 | 30728230 | BRACKET A (#30728230) |
| 24 | 30027931 | GASKET (#30027931) |
| 25 | 98610110 | ALLEN BOLT (#98610110) |
| 26 | 30716500 | IGNITION COIL (#30716500) |
| 27 | 98620130 | ALLEN BOLT A (#98620130) |
| 29 | 30717410 | PLUG CAP NGK (#30717410) USE AP8212219 |
| 30 | 14717600 | SPARK PLUG RUBBER BOOT (#14717600) |
| 31 | ||
| 32 | 98054116 | BOLT (#98054116) |
| 33 | 98054210 | BOLT (#98054210) |
| 34 | 29217960 | WASHER (#29217960) |
| 35 | 29729762 | ANTI TAMPER CAP (#29729762) |
| 36 | 95120032 | WASHER A (#95120032) |
| 37 | 92601003 | NUT A (#92601003) |
| 38 | 30944700 | DECAL FUSEBOX A (#30944700) |
