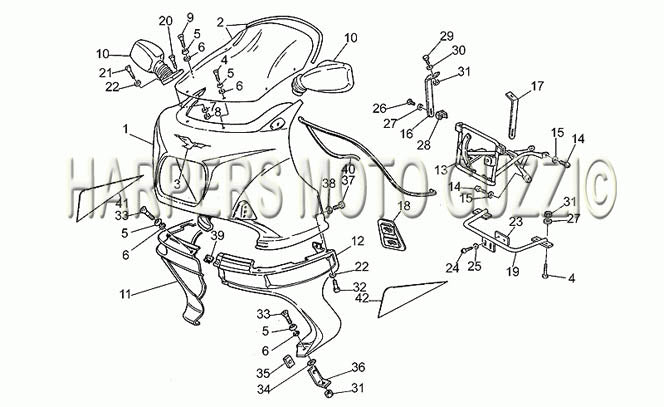

1992 2001 V 50 PA 500 Front Body Front Fairing
| Position | Part Number | Description |
|---|---|---|
| 1 | 19575430 | Top fairing, white (#19575430) |
| 1 | 315754401 | #01 Top fairing, blank (#315754401) |
| 1 | 89000126 | Top fairing, navy blue (#89000126) |
| 1 | 89000254 | Top fairing, sky blue (#89000254) |
| 2 | 31577240 | #02 Windscreen (#31577240) |
| 3 | 27917520 | DECAL OLD STYLE EAGLE (#27917520) |
| 4 | 98250625 | ALLEN BOLT (#98250625) |
| 5 | 18577850 | WASHER (#18577850) |
| 6 | 45212400 | WASHER (#45212400) |
| 7 | 95001206 | WASHER (#95001206) |
| 8 | 92630207 | NUT NYLOC \ (#92630207) |
| 9 | 98250630 | ALLEN BOLT (#98250630) |
| 10 | 28769847 | MIRROR (#28769847) |
| 11 | 195703161 | RH leg protection, blank (#195703161) |
| 11 | 19570330 | RH leg protection, white (#19570330) |
| 11 | 89000127 | RH lower fairing, navy blue (#89000127) |
| 11 | 89000260 | RH lower fairing, sky blue (#89000260) |
| 12 | 195704161 | LH leg protection, blank (#195704161) |
| 12 | 19570430 | LH leg protection, white (#19570430) |
| 12 | 89000128 | LH lower fairing, navy blue (#89000128) |
| 12 | 89000261 | LH lower fairing, sky blue (#89000261) |
| 13 | 31578640 | #11 Support plate (#31578640) |
| 14 | 98822414 | ALLEN BOLT A (#98822414) |
| 15 | 95021108 | WASHER (#95021108) |
| 16 | 31573540 | RH support (#31573540) |
| 17 | 31573640 | #19 LH support (#31573640) |
| 18 | 19941715 | KNEE PAD (#19941715) |
| 19 | 31570840 | #14 Front fairing support (#31570840) |
| 20 | 98202516 | SCREWS (#98202516) |
| 21 | 98202520 | SCREW (#98202520) |
| 22 | 95007205 | WASHER (#95007205) |
| 23 | 17451750 | PLATE (#17451750) |
| 24 | 98054420 | BOLT (#98054420) |
| 25 | 95004208 | WASHER (#95004208) |
| 26 | 98054220 | BOLT (#98054220) |
| 27 | 95004206 | WASHER (#95004206) |
| 28 | 92660601 | CAGE NUT (#92660601) |
| 29 | 98054320 | BOLT (#98054320) |
| 30 | 95100120 | WASHER (#95100120) use 95105320 |
| 31 | 92630106 | NUT USE 92630707 (#92630106) |
| 32 | 98610225 | SCREW (#98610225) |
| 33 | 98250618 | ALLEN SCREW (#98250618) |
| 34 | 93110060 | RUBBER WASHER (#93110060) |
| 35 | 19579216 | Plate (#19579216) |
| 36 | 19579116 | Spacer (#19579116) |
| 37 | 98290520 | SCREW (#98290520) |
| 38 | 29577860 | PLASTIC WASHER (#29577860) |
| 39 | 28576590 | CLIP A (#28576590) |
| 40 | 00823931077 | GASKET (#00823931077) |
| 41 | 31924640 | RH decal, navy blue (#31924640) |
| 41 | 31924641 | RH decal, black (#31924641) |
| 42 | 31924740 | LH decal, navy blue (#31924740) |
| 42 | 31924741 | LH decal, black (#31924741) |
