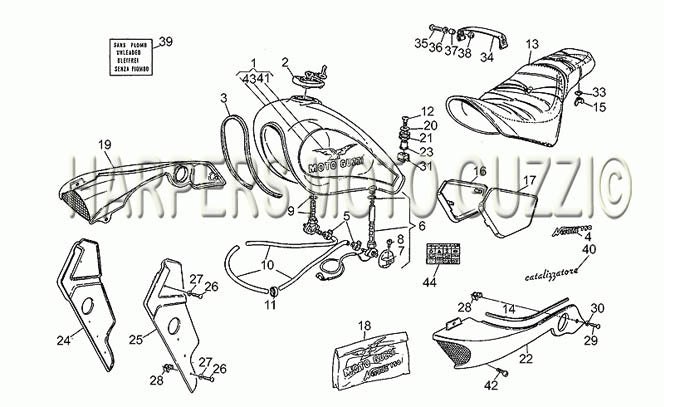

| Position |
Part Number |
Description |
| 1 |
311002651
|
Fuel tank (#311002651 ) |
| 1 |
31100266
|
Fuel tank (#31100266) SHINY BLACK |
| 1 |
31100267
|
Fuel Tank (#31100267) BLUE |
| 1 |
31100270
|
#01 Fuel tank (#31100270) |
| 1 |
31100271
|
Fuel Tank (#31100271) BLUE |
| 1 |
31100272
|
Fuel tank (#31100272) AMARANTH RED |
| 1 |
31100285
|
Fuel Tank (#31100285) CHERRY RED |
| 1 |
31100286
|
Fuel Tank (#31100286) GREEN |
| 1 |
31100289
|
Fuel tank (#31100289) RED/BLACK |
| 2 |
30103960
|
GAS CAP (#30103960) |
| 3 |
| 4 |
31922065
|
#04 Decal Nevada 750 inch (#31922065) |
| 4 |
31922066
|
#04 Decal Nevada 750 inch (#31922066) |
| 4 |
31922067
|
#04 Decal Nevada 750 inch (#31922067) |
| 5 |
93305017
|
HOSE CLAMP (#93305017) |
| 6 |
31105460
|
#06 LH fuel cock (#31105460) |
| 7 |
29105750
|
KNOB (#29105750) |
| 8 |
98200306
|
SCREW (#98200306) |
| 9 |
31105360
|
#09 RH fuel cock (#31105360) |
| 10 |
00823956080
|
OIL BREATHER HOSE (#00823956080) |
| 11 |
28157950
|
BREATHER PIPE CLAMP (#28157950) |
| 12 |
98230822
|
TOP SHOCK BOLT (#98230822) |
| 13 |
31460560
|
#13 Saddle (#31460560) |
| 13 |
31460561
|
#13 Saddle (#31460561) |
| 15 |
92670206
|
#15 Nut (#92670206) |
| 16 |
234762101
|
#16 RH side cover blank (#234762101) |
| 16 |
31476266
|
#16 RH side panel (#31476266 ) |
| 16 |
31476267
|
#16 RH side panel, no decal (#31476267) |
| 16 |
31476270
|
#16 RH body panel with decal (#31476270) |
| 16 |
31476271
|
#16 RH body panel with decal (#31476271) |
| 16 |
31476272
|
#16 RH body panel with decal (#31476272) |
| 16 |
31476285
|
#16 RH side panel, no decal (#31476285) |
| 17 |
314763621
|
#17 LH side cover blank (#314763621) |
| 17 |
31476366
|
#17 LH side panel (#31476366) |
| 17 |
31476367
|
#17 RH side panel, no decal (#31476367) |
| 17 |
31476370
|
#17 LH body panel with decal (#31476370) |
| 17 |
31476371
|
#17 RH body panel with decal (#31476371) |
| 17 |
31476372
|
#17 LH body panel with decal (#31476372) |
| 17 |
31476385
|
#17 LH side panel, no decal (#31476385) |
| 18 |
31923365
|
#18 Decal set (#31923365) |
| 18 |
31923366
|
#18 Decal set (#31923366) |
| 18 |
31923370
|
#18 Decal set (#31923370) |
| 19 |
31570665
|
#19 RH side panel assy, chrome (#31570665) |
| 20 |
95100256
|
WASHER (#95100256) |
| 21 |
91551131
|
GROMMET (#91551131) |
| 22 |
31570765
|
#22 LH side panel assy, chrome (#31570765) |
| 23 |
31103565
|
SPACER (#31103565) |
| 24 |
31575365
|
#24 RH front protect black (#31575365) |
| 25 |
31575465
|
#25 LH front protect black (#31575465) |
| 26 |
98230620
|
ALLEN BOLT (#98230620) |
| 27 |
95001206
|
WASHER (#95001206) |
| 28 |
92660601
|
CAGE NUT (#92660601) |
| 29 |
98230626
|
ALLEN BOLT(#98230626) |
| 30 |
95100121
|
WASHER (#95100121) |
| 31 |
92660801
|
CAGE NUT (#92660801) |
| 33 |
93110082
|
RUBBER WASHER (#93110082) |
| 34 |
31462261
|
#34 Pillion grab bar (#31462261) |
| 35 |
98326016
|
SCREW, PAN HEAD (#98326016) |
| 36 |
95100142
|
WASHER (#95100142) |
| 37 |
91180607
|
SPACER (#91180607) |
| 38 |
92630207
|
NUT NYLOC \ (#92630207) |
| 39 |
29995735
|
DECAL UNLEADED A (#29995735) |
| 40 |
30922035
|
DECAL CATALYST A (#30922035) |
| 41 |
19917535
|
DECAL MOTO GUZZ (#19917535) |
| 41 |
30917501
|
DECAL M-G A (#30917501) |
| 41 |
30917860
|
DECAL M-G RH A (#30917860) |
| 42 |
98230621
|
ALLEN BOLT(#98230621) |
| 43 |
30925510
|
#07 Red line sticker (#30925510) |
| 43 |
30925512
|
#07 Blue line decal (#30925512) |
| 43 |
71920518
|
#07 Blue line decal (#71920518) |
| 44 |
31945467
|
#32 Fuse table decal (#31945467) |
