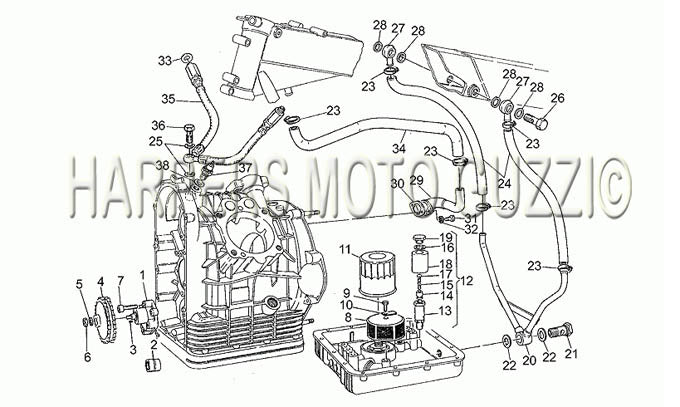

1994 1996 Sport Carburated 1100 Oil Pump
| Position | Part Number | Description |
|---|---|---|
| 1 | 30146400 | HIGH VOLUME OIL PUMP HD (#30146400) |
| 2 | 92252210 | BEARING (#92252210) |
| 3 | 13148300 | KEY SQUARE STOCK (#13148300) |
| 4 | 30147700 | PUMP GEAR HD (#30147700) |
| 5 | 95120085 | WASHER (#95120085) |
| 6 | 92602308 | NUT (#92602308) |
| 7 | 98622430 | SCREW (#98622430) |
| 8 | 14152200 | FILTER SCREEN (#14152200) |
| 9 | 98054316 | BOLT (#98054316) USE STHB6X16 |
| 10 | 95187006 | STOP PLATE (#95187006) |
| 11 | 30153000 | OIL FILTER #30153000 UFI 23.287.00 (#30153000) |
| 12 | 03158200 | OIL VALVE ASSY A (#03158200) |
| 13 | 10158701 | VALVE HOUSING (#10158701) |
| 14 | 30150900 | VALVE PISTON A (#30150900) |
| 15 | 94321079 | SPRING (#94321079) |
| 16 | 95100523 | WASHER (#95100523) |
| 17 | 12150700 | BOTTOM PLATE (#12150700) |
| 18 | 14158800 | BOTTOM CUP (#14158800) |
| 19 | 12159000 | PLUG (#12159000) |
| 20 | 30154601 | OIL PIPE (#30154601) |
| 21 | 30006601 | BANJO BOLT (#30006601) |
| 22 | 95100709 | CRUSH WASHER (95100709) (#95100709) |
| 23 | 12157900 | BAND OR CLAMP (#12157900) |
| 24 | 00823941110 | TUBO (#00823941110) |
| 25 | 12154200 | OIL LINE CRUSH WASHER (#12154200) |
| 26 | 95990084 | BANJO BOLT (#95990084) |
| 27 | 30156800 | BANJO FITTING (#30156800) |
| 28 | 10154200 | GASKET (#10154200) |
| 29 | 28007250 | BREATHER PIPE (#28007250) |
| 30 | 12007600 | OIL RETURN GASKET (#12007600) |
| 31 | 98054320 | BOLT (#98054320) |
| 32 | 95120065 | WASHER (#95120065) |
| 33 | 25656102 | GASKET (#25656102) |
| 34 | 30157400 | BREATHER HOSE (#30157400) |
| 35 | 14153660 | OIL LINE PIPE (#14153660) USE 14153660A |
| 36 | 95990037 | BANJO BOLT (#95990037) |
| 37 | 17768750 | OIL SENDER (#17768750) |
| 38 | 12006400 | ALUM CRUSH WASHER (#12006400) |
