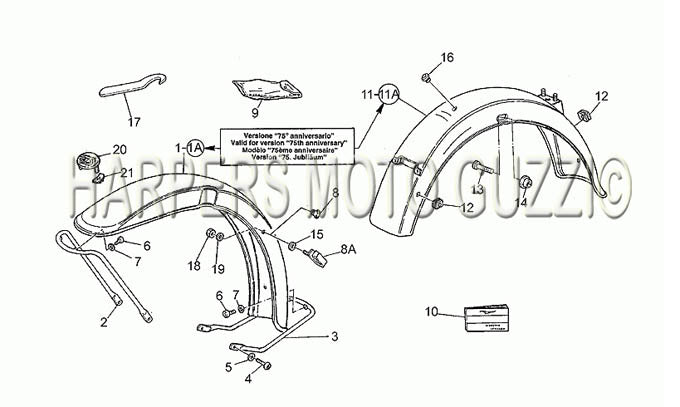

1994 1997 California 1100 Front Rear Mudguard
| Position | Part Number | Description |
|---|---|---|
| 1 | 294343602 | FRONT FENDER (#294343602) |
| 1 | 30434361 | FRT FNDR BLK/CH C (#30434361) |
| 1 | 30434362 | FRT FENDER CAL 1100 (#30434362) |
| 1 | 30434363 | FRT FENDER BLK/RED CAL 1100 (#30434363) |
| 1 | 30434364 | FRT FNDR BLK/YE C (#30434364) |
| 1 | 30434369 | Front mudguard, blue/gold (#30434369) |
| 1 | 30434379 | FRT FNDR AM/RED D (#30434379) |
| 1 | 30434385 | FRT FNDR BLU/BE D (#30434385) |
| 1 | 30434386 | FRT FNDR BLK/RE D (#30434386) |
| 1 | 30434387 | FRT FNDR GRN/BL D (#30434387) |
| 1 | 30434388 | FRT FNDR CHROME C (#30434388) |
| 1 | 89000124 | FNDR FRT 75TH D (#89000124) |
| 2 | 30435760 | FRT FNDR BRKT A (#30435760) |
| 3 | 30435960 | LWR FNDR BRKT A (#30435960) |
| 4 | 98230816 | SCREW (#98230816) |
| 5 | 61270300 | WASHER (#61270300) |
| 6 | 98822314 | SCREW (#98822314) |
| 7 | 95000206 | WASHER (#95000206) |
| 8 | 29436550 | GUIDE (#29436550) |
| 8 | 93180050 | PLUG (#93180050) |
| 9 | 28929940 | TOOL KIT 14929955 (#28929940) |
| 10 | 30900060 | O MANL ALL CA 1100 & 1100 I (#30900060) |
| 11 | 304370602 | REAR FENDER (#304370602) |
| 11 | 30437061 | REAR FNDR BLK/CHROME (#30437061) |
| 11 | 30437062 | REAR FNDR BLK/G C (#30437062) |
| 11 | 30437063 | REAR FNDR BLK/R C (#30437063) |
| 11 | 30437064 | REAR FNDR BLK/YELLOW NLA (#30437064) |
| 11 | 30437069 | Rear mudguard, blue/gold (#30437069) |
| 11 | 30437079 | REAR FNDR AM/RE D (#30437079) |
| 11 | 30437085 | REAR FNDR BLU/B D (#30437085) |
| 11 | 30437086 | REAR FNDR BLK/R D (#30437086) |
| 11 | 30437087 | REAR FNDR GRN/B D (#30437087) |
| 11 | 30437088 | REAR FNDR CHROM C (#30437088) |
| 11 | 89000122 | FNDR REAR 75TH D (#89000122) |
| 12 | 91551099 | RUBBER (#91551099) |
| 13 | 30439060 | BOLT (#30439060) |
| 14 | 30435560 | SPACER A (#30435560) |
| 15 | 30577800 | NYLON WASHER (#30577800) |
| 16 | 93180080 | PLUG (#93180080) |
| 17 | 31912760 | SHOCK WRENCH A (#31912760) |
| 18 | 92630205 | LOCK NUT (#92630205) |
| 19 | 95000205 | WASHER (#95000205) |
| 20 | 30930676 | BADGE 75TH (#30930676) |
| 21 | 39922200 | PLATE (#39922200) |
