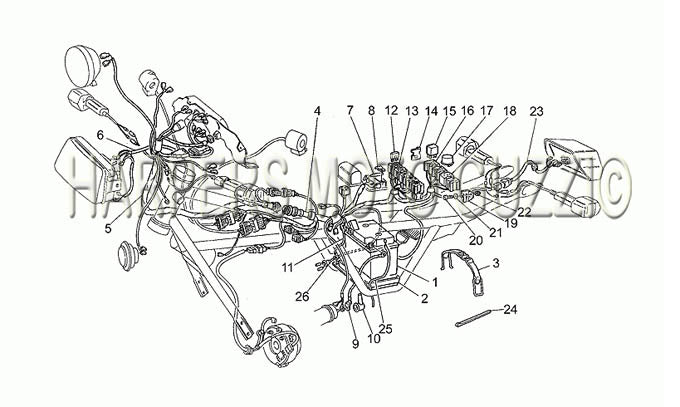

1995 2001 750x Polizia pa 2a Serie 750 Electrical System
| Position | Part Number | Description |
|---|---|---|
| 1 | 03704540 | BATTERY B (#03704540) |
| 1 | 28704545 | #01 Battery VARTA 530.30 12V-30A (#28704545) |
| 2 | ||
| 3 | 27704815 | #03 Plate (#27704815) |
| 4 | 31747136 | #04 Electrical system Bosch (#31747136) |
| 4 | 31747137 | #04 Electrical system Ducati (#31747137) |
| 4 | 31747138 | #04 Electrical system (#31747138) |
| 5 | 31747236 | #05 Headlight wiring w/harness (#31747236) |
| 5 | 31747237 | #05 Headlight wiring w/harness (#31747237) |
| 5 | 31747239 | #05 Headlight wiring w/harness (#31747239) |
| 6 | 14747455 | CABLE ASSY (#14747455) |
| 6 | 28747449 | #06 Headlight wiring w/harness (#28747449) |
| 7 | 28727200 | RESISTANCE (#28727200) |
| 8 | 93301175 | CABLE CLAMP (#93301175) |
| 9 | 19748000 | CABLE (#19748000) |
| 10 | 19707100 | CAP (#19707100) |
| 11 | 28747960 | GROUND STRAP (#28747960) |
| 12 | 28742560 | FUSE 15A (#28742560) use 290860 |
| 13 | 30732200 | FUSE HOLDER (#30732200) |
| 14 | 30477101 | BRACKET RH (#30477101) USE 304771015 |
| 15 | ||
| 16 | 30732400 | RELAY HOLDER (#30732400) |
| 17 | 17750520 | TURN SIGNAL FLASHER (#17750520) |
| 18 | 30756100 | FLASHER HOLDER (#30756100) |
| 19 | 30477200 | BRACKET LH (#30477200) |
| 20 | 98622310 | ALLEN BOLT (#98622310) |
| 21 | 61013800 | SPRING WASHER (#61013800) |
| 22 | 92630206 | NUT (#92630206) |
| 23 | 31747330 | #23 Taillight wiring harn. (#31747330) |
| 24 | 14609650 | TIE WRAP (#14609650) |
| 24 | 61609630 | #26 Hose clamp (#61609630) |
| 25 | 00823946060 | Breather pipe (#00823946060) |
| 26 | 12717600 | Cap (#12717600) |
